供应GPL12400 CSB电池 12V 40Ah
| 价 格： | 面议 | |
| 型号/规格： | CSB蓄电池 GPL12400 | |
| 品牌/商标： | CSB |
CSB电池(CSB蓄电池) GPL12400
12V 40Ah
GPL12400 is a general purpose battery up to 10 years expected life under normal float charge.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
规格书
局数 6
电压值 12V
安培数 40Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F)
重量(kg) Approx. 14.5 kg (31.97 lbs)
放电电流5秒(A) 400A (5sec)
内阻(mΩ) Approx. 7.0 mΩ
温度工作范围 Discharge: -15 ℃ ~50 ℃ (5 °F ~122°F )
Charge: -15 ℃ ~40 ℃ (5 °F ~104 °F )
Storge: -15 ℃ ~40 ℃ (5 °F ~104 °F )
一般使用温度工作范围 25 ℃± 3 ℃ (77 °F± 5 °F )
浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25 ℃ (77 °F)
建议充电电流 12A
均充使用充电条件 14.4 to 15.0 VDC/unit Average at 25 ℃ (77 °F)
自放电 It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
端子 B2-L terminal or recessed terminal to accept M6 bolt
电槽组材质 ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88637) can be available upon request.
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 任远峰
- 电话：0755-83796159
- 传真：0755-83794083
- 手机：13602536280
- QQ ：

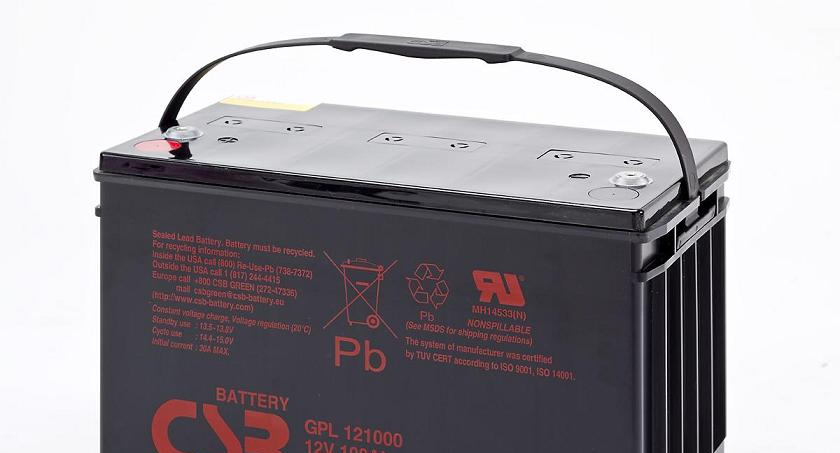

供应GPL121000 CSB电池 12V 100Ah
信息内容：CSB电池(CSB蓄电池) GPL121000 12V 100Ah GPL121000 is a general purpose battery up to 10 years expected life under normal float charge. As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free. 规格书 局数 6 电压值 12V 安培数 100Ah @ 20hr-rate to 1.75 volts per cell @ 25°C (77°F) 重量(kg) Approx. 33.5kg. (73.85 lbs.) 放电电流5秒(A) 800A (5 sec.) 内阻(mΩ) 3.5mΩ 温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：-15℃~40℃(5°F~104°F)Storage：-15℃~40℃(5°F~104°F) 一般使用温度工作范围 25°C ± 3°C (77°F ± 3°F) 浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F) 安培数/只 30A 循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F) 单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter. 端子 I2-Thread lead alloy recessed terminal to accept M6/M8 bolt 电槽组材质 Polypropylen...

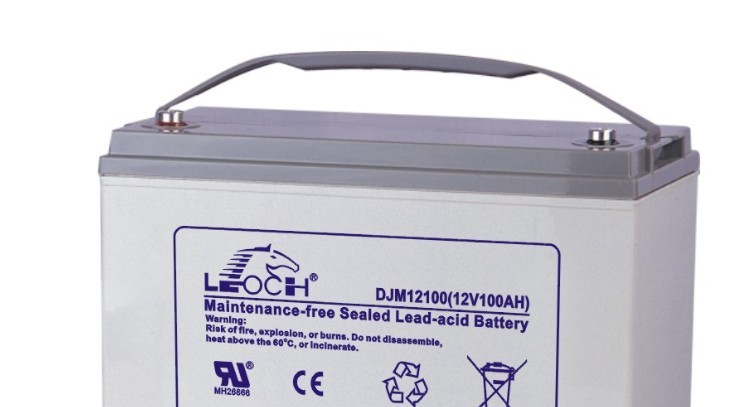

供应DJM12100 理士电池 12V 100Ah
信息内容：理士电池(理士蓄电池) DJM1210012V 100Ah DJM12100 is a general purpose battery up to 12 years in standby service.理士电池 DJM12100规格书电压值 12V容量 100Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)尺寸 Length 330±3mm (12.99 inches) Width 173±2mm (6.81 inches)Container Height 212±2mm (8.35 inches) Total Height (with Terminal) 220±2mm (8.66 inches)重量(kg) Approx 30.0 kg (66.15lbs)放电电流5秒(A) 1200A (5s)内阻(mΩ) Approx 4.9mΩ温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：0℃~40℃(32°F~104°F)Storage：-15℃~40℃(5°F~104°F)一般使用温度工作范围 25°C ±3°C (77°F ± 5°F)浮充使用 No limit on Initial Charging Current Voltage13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C循环使用 Initial Charging Current less than 30.0A.Voltage14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C自放电 LEOCH DJM series Batteries can be stored for more than 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval ...
