供应DJM12100 理士电池 12V 100Ah
| 价 格： | 面议 | |
| 型号/规格： | 理士蓄电池 DJM12100 | |
| 品牌/商标： | LEOCH(理士) |
理士电池(理士蓄电池) DJM12100
12V 100Ah
DJM12100 is a general purpose battery up to 12 years in standby service.
理士电池 DJM12100
规格书
电压值 12V
容量 100Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
尺寸 Length 330±3mm (12.99 inches)
Width 173±2mm (6.81 inches)
Container Height 212±2mm (8.35 inches)
Total Height (with Terminal) 220±2mm (8.66 inches)
重量(kg) Approx 30.0 kg (66.15lbs)
放电电流5秒(A) 1200A (5s)
内阻(mΩ) Approx 4.9mΩ
温度工作范围 Discharge：-15℃~50℃(5°F~122°F)
Charge：0℃~40℃(32°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用温度工作范围 25°C ±3°C (77°F ± 5°F)
浮充使用 No limit on Initial Charging Current Voltage
13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C
循环使用 Initial Charging Current less than 30.0A.Voltage
14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C
自放电 LEOCH DJM series Batteries can be stored for more than 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
端子 T11
电槽组材质 ABS
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 任远峰
- 电话：0755-83796159
- 传真：0755-83794083
- 手机：13602536280
- QQ ：
供应DJM1245 理士电池 12V 45Ah
信息内容：理士电池(理士蓄电池) DJM124512V 45Ah DJM1245 is a general purpose battery up to 12 years in standby service.理士电池 DJM1245规格书电压值 12V容量 45Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)尺寸 Length 197±2mm (7.76 inches) Width 165±2mm (6.50 inches) Container Height 170±2mm (6.69 inches) Total Height (with Terminal) 170±2mm (6.69 inches)重量(kg) Approx 14.5 kg (32.0lbs)放电电流5秒(A) 540A (5s)内阻(mΩ) Approx 9.0mΩ温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：0℃~40℃(32°F~104°F)Storage：-15℃~40℃(5°F~104°F)一般使用温度工作范围 25°C ±3°C (77°F ± 5°F)浮充使用 No limit on Initial Charging Current Voltage13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C循环使用 Initial Charging Current less than 13.5A.Voltage14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C自放电 LEOCH DJM series Batteries can be stored for more than 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval will be...

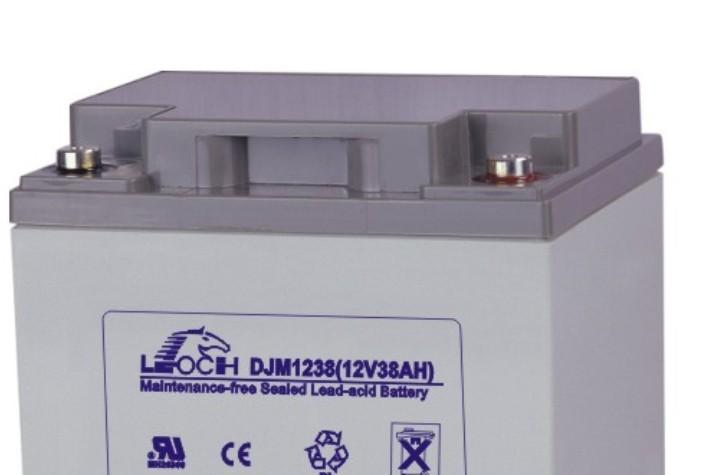

供应DJM1238 理士电池 12V 38Ah
信息内容：理士电池(理士蓄电池) DJM123812V 38Ah DJM1238 is a general purpose battery up to 12 years in standby service.理士电池 DJM1238规格书电压值 12V容量 38Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)尺寸 Length 197±2mm (7.76 inches) Width 165±2mm (6.50 inches) Container Height 170±2mm (6.69 inches) Total Height (with Terminal) 170±2mm (6.69 inches)重量(kg) Approx 12.2 kg (26.9lbs)放电电流5秒(A) 456A (5s)内阻(mΩ) Approx 10mΩ温度工作范围 Discharge：-15℃~50℃(5°F~122°F)Charge：0℃~40℃(32°F~104°F)Storage：-15℃~40℃(5°F~104°F)一般使用温度工作范围 25°C ±3°C (77°F ± 5°F)浮充使用 No limit on Initial Charging Current Voltage13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C循环使用 Initial Charging Current less than 11.4A.Voltage14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C自放电 LEOCH DJM series Batteries can be stored for more than 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval will be ...
