特价供应TURCK图尔克位置传感器BI2-CRS3
| 价 格： | 1.00 |
品牌:TURCK图尔克 型号:BI2-CRS343-AP4X2-H1141/S34 种类:位置 材料:聚合物 材料物理性质:绝缘体 材料晶体结构:单晶 制作工艺:集成 输出信号:NO 防护等级:IP 67 线性度:NO（%F.S.） 迟滞:NO（%F.S.） 重复性:≤2％（%F.S.） 灵敏度:NO 漂移:± 20％ 分辨率:NO
dzsc/18/2401/18240123.jpg
dzsc/18/2401/18240123.jpg
Ripple. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤10%
Differential Travel (Hysteresis) . . . . . . . . . . . . . . . . . . . . 2-20% (5% typical)
Voltage Drop Across Conducting Sensor. . . . . . . . . . . . . . . ≤1.8 V at 200 mA
Trigger Current for Overload Protection . . . . . . . . . . . . . . . ≥220 mA
Off-State (Leakage) Current . . . . . . . . . . . . . . . . . . . . . <100 μA
No-Load Current . . . . . . . . . . . . . . . . . . . . . . . . . . ≤15 mA
Power-On Effect . . . . . . . . . . . . . . . . . . . . . . . . . . Per IEC 947-5-2
Reverse Polarity Protection . . . . . . . . . . . . . . . . . . . . . Yes
Wire-Break Protection . . . . . . . . . . . . . . . . . . . . . . . Yes
Transient Protection. . . . . . . . . . . . . . . . . . . . . . . . . Per EN 60947-5-2
Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 g, 11 ms
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Hz, 1 mm Amplitude in all 3 Planes
Repeatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤2% of Rated Operating Distance
Temperature Drift. . . . . . . . . . . . . . . . . . . . . . . . . . <±20% of Rated Operating Distance
- 所属城市：江西 南昌
- [联系时请说明来自维库仪器仪表网]
- 联系人： 花方久
- 电话：0791-6176886
- 传真：0791-6176886
- 手机：
- QQ ：

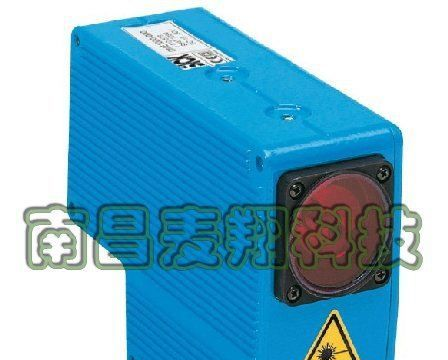

特价供应SICK施克距离传感器/LS传感器DME3000-232
信息内容：Long range distance sensorsProduct group DME3000, Distance sensor, proximity mode Model Name DME3000-232Part No. 1015794 Product features Measurement range min ... max: 100 mm ... 10,000 mm Measuring condition: Relative to front edge of lens Remark: Proximity mode Light source: Laser diod Type of light: Laser, red light Laser protection class: 3 B (IEC 825-1/EN 60825-1) Technology: Distance sensor, proximity mode Distance from ... to: 100 mm ... 10,000 mm Technical data Dimensions (W x H x D): 54 mm x 105 mm x 138 mm Supply voltage min ... max: DC 18 ... 30 V Data interface: RS-422, SSI Light spot diameter: 5 mm at measurement distance 8 m Ripple: < 5 Vpp Output current: <= 100 mA Switching outputs: PNP/NPN, Q1, Q2, Qp, Qs Accuracy of sensor element: /- 5 ... /- 20 mm Reproducibility: 0.5 ... 20 mm Measured value output: RS-422: 21 ms, SSI: 21 ms Connection type: connector, M16, 12-pin Enclosure rating: IP 65 Reverse polarity protection: 1 S...

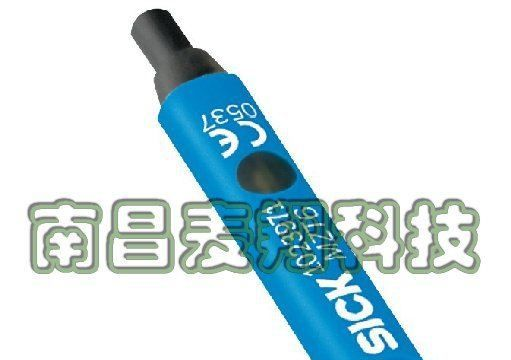

SICK施克MZT6-03VPS-KR0磁性气缸传感器
信息内容：Magnetic Cylinder SensorsMagnetic cylinder sensor, DC 3-wire, for T-slot cylinders Model Name MZT6-03VPS-KR0Part No. 1023972 With new ASIC for maximum switching accuracy Mountable from the top For all common used T-slot cylinder Plastic housing with nickel silver bushing and hexagon socket/sloted screw LED function indicator Enclosure rating IP 68, IP 69K Product features Sensing face: Front Switching output voltage: PNP Output function: Normally open Switching frequency: 1,000 Hz Connection type: Cable with plug, M8, 3-pin, w. knurled screws, PUR, 0.5 m Technical data Length: 31.5 mm Supply voltage: DC 10 ... 30 V Ripple: <= 10 % Power consumption: <= 10 mA Response sensitivity: 2.6 mT Continuous current: <= 200 mA Reproducibility: (Ub and Ta constant), <= 0.1 mT (Ub and Ta constant) EMC: according to EN 60947-5-2 Wire-break protection: Short-circuit protection (pulsed): Reverse polarity protection: Power-up pulse suppression: Encl...
