供应四路的ESD防静电二极管UESD54B
| 价 格： | 面议 | |
| 型号/规格： | UESD54B | |
| 品牌/商标： | Union上海英联 | |
| 封装形式： | SC70-5 | |
| 环保类别： | 无铅环保型 | |
| 安装方式： | 贴片式 | |
| 包装方式： | 卷带编带包装 | |
| 功率特性： | | |
| 频率特性： | | |
| 整流电流： | | |
| 反向击穿电流： | A |
dzsc/18/2300/18230075.jpg
features:
Transient protection for data & power lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) Protect four I/O lines
Ultra-small SC70-5 / SC88A / SOT353
Working Voltages: 5V
Low Leakage current
Low operating and clamping voltage
Solid-state silicon avalanche technology
Description:
The UESD54B of TVS diode array is designed to protect sensitive electronics from damage or latch-up due to ESD, for use in applications where board space is at a premium. It is unidirectional device and may be used on lines where the signal polarities are above ground, each device will protect up to four lines. TVS diodes are solid-state devices feature large cross-sectional area junctions for conducting high transient currents, specifically for transient suppression. It offers desirable characteristics for board level protection including fast response time, low operating, low clamping voltage, and no device degradation. The UESD54B may be used to meet the immunity requirements of IEC 61000-4-2, level 4. The small package makes them ideal for use in portable electronics such as cell phones, PDA抯, notebook computers, and digital cameras
UESD54B适用于保护四路单向数据线的静电保护，其SC70-5的小型封装是各种便携式设备电路板的设计的选择，目前对于ON.ST PHILLIPS,VISHAY等品牌的同类产品，具有的性价比。
dzsc/18/2300/18230075.jpg
dzsc/18/2300/18230075.jpg
dzsc/18/2300/18230075.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：

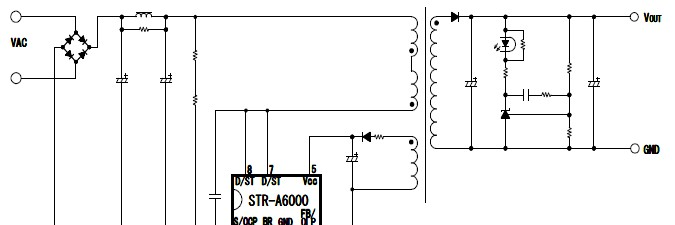

供应A6059H开关电源PWM控制器电源IC
信息内容：特点： Current-Mode Type PWM Control Built-in Random Switching FunctionThe function reduces the EMI noise and enables a simplified (low-cost) EMI filter,by the slight- random-change of PMW frequency fOSC. Auto-Standby Function: The burst-oscillation enables the low standby power. Input Power PIN < 25mW at no load Built-in Startup Circuit, enabling low power consumption Brown-In / Brown-Out FunctionThe function enables the oscillation start/stop by externally rated input voltage and makes protections at low inputvoltage. Overcurrent Protection (OCP) with Built-in Input Compensation Circuit:The protection has less AC input voltage dependency. Overload Protection (OLP) with Built-in Delay Timer High Speed Latch Release FunctionThe function releases the latch immediately at AC supply OFF, after the latch protection operation. Bias-Assist Function, reducing Operating VCC voltage dropThe function improves the startup operation and makes a low VCC capacitor applicable. Lead...
供应LCTA28CE系列立式穿芯微型精密电流变换器

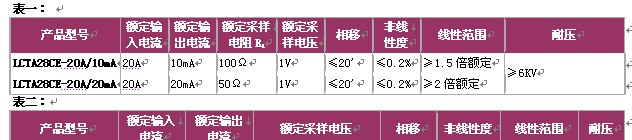

信息内容：LCTA28CE系列立式穿芯微型精密电流变换器 一、 特 点： 1、立式穿芯印刷线路板直接焊接安装、外形美观； 2、体积小，精度高；全封闭，机械和耐环境性能好，电压隔离能力强，安全可靠。 二、使用环境条件： 1、环境温度：-40℃~+85℃； 2、相对湿度：温度为40℃时不大于90%。 三、工作频率范围：20Hz~20KHz。四、绝缘耐热等级：B级（130℃）。五、安全特性： 1、绝缘电阻：常态时大于1000MΩ； 2、抗电强度：可承受工频6000V/1分钟； 3、阻 燃 性：符合UL94-Vo级。 六、外形图、安装尺寸和线圈图： dzsc/18/2300/18230077.jpg 七、性能参数： 1、 用电阻法直接获得采样电压时（如下图一所示），性能参数见表一； 2、 用IC法获得采样电压时（如下图二所示），性能参数见表二; dzsc/18/2300/18230077.jpg 表 dzsc/18/2300/18230077.jpg
