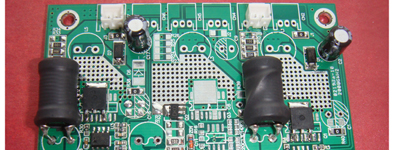

LED升压板│LED恒流板│LED背光驱动板LDA02-42V320A
| 价 格： | 面议 | |
| 型号/规格： | LDA02-42V320A | |
| 品牌/商标： | PACIT |
| 产品特性： |
|
产品名称:LED DRIVER 应用:LED PANEL 输入电压范围：10.8~24V (可根据客户要求调节) 输出:43V/20mA 16个通道 MAX:67V/600mA 输出功率:20W(MAX) 适用于:M240HW01 V6 LED PANEL (板上设计有多种接口，可以匹配18.5~24"LED PANEL) 尺寸: 108*15*10(mm) 孔距100mm |
| 产品参数： | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1. General description Scope: This LDA02-42V320A sepic LED driver for 18.5~24” of LCD backlight system. 2. Applications 24” LED Backlight LCD panels For AUO M240HW01 V6. 21.5” AUO M215HW01 V6 M240HW01 V6 CLAA215FA 3. Absolute maximum rating l Input supply voltage .: 11~13V l Input current . : 1.55A(MAX) l Input power : 16.5W l Output current : 20mA X 16CH l Output power : 14.5W l Brightness adjusted voltage : 0V(MAX)~5.0V(MIN) l Input signal voltage :0V/OFF 5.0V/ON ( l Ambient operating temperature : l Storage temperature : l Operating & storage humidify: 10%~85% l Over voltage protect(OVP) l High efficency (TYP:88%) 4.Electrical Requirements This section defines the electrical requirements for the LED driver 4.1Input Characteristics
4.2 Output Characteristics: 4.2.1 DC output CN4.CN5:
5.0 Connector: 5.1 DC input connector
5.2 Output connector
|
