供应单片机 24LC08BT
| 价 格： | 0.35 | |
| 型号/规格： | 24LC08BT | |
| 品牌/商标： | ARTSCHIP |
| 产品概述： | 8K 2.5-5.5V SPI O Bus Serial EEPROM | ||
| 应用特性： | .Single supply with operation down to 1.8V .Low-power CMOS technology: ---1mA active current, typical ---1μA standby current, typical (1-temp) .Organized as 4 blocks of 256 bytes (4×256×8) .2-wire serial interface bus, I2CTM compatible .Schmitt Trigger inputs for noise suppression .Output slope control to eliminate ground bounce .100kHz (<2.5V) and 400 kHz (≥2.5V) compatibility .Self-timed write cycle (including auto-erase) .Page write buffer for up to 16 bytes .2ms typical write cycle time for page write. .Hardware write-protect for entire memory .Can be operated as a serial ROM .Factory programming (QTP) available .ESD protection >4,000V .1,000,000 erase / write cycles .Data retention >200 years .8-lead PDIP, SOIC, TSSOP, DFN and MSOP packages .5-lead SOT-23 package .Standard and Pb-free finishes available .Available for extended temperature ranges: ---Industrial (I): -40℃ to +85℃ ---Automotive (E): -40℃ to +125℃ | ||
- 所属城市：浙江 杭州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 毛先生、黄小姐
- 电话：0571-88009116
- 传真：0571-88009890
- 手机：18858188011
- QQ ：

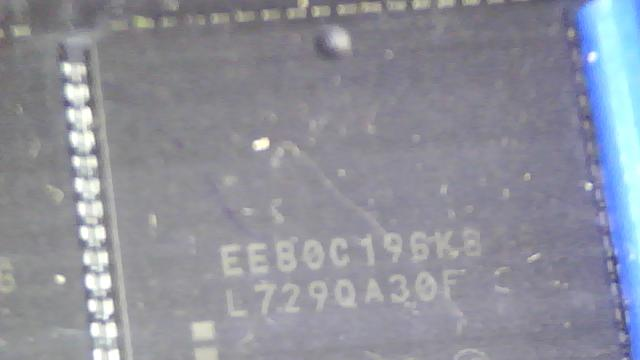

供应单片机 EE80C196KB
信息内容：产品概述： The 8XC196KB is a 16-bit microcontroller available in three different memory varieties:ROMless (80C196KB),8KROM (83C196KB) and 8K OTP (One Time Programmable-87C196KB).The 8XC196KB is a high performance member of the MCS 96 microcntroller familly. The 8XC196KB has the same perpheral set as the 8096BH and has a true superset of the 8096BH instructions.Artship's CHMS process provides a high performance processor along with low power consumption.To further reduce power requirements,the processor can be placed into ldle or Powerdown Mode. 应用特性： 8Kbytes of On-Chip ROM/OTP Available232 Byte Register FileRegister-to-Register Architecture28 Interrupt Sources/16 Vectors1.75us 16 x 6 Multiply (16MHz)30us 32/16 Divide (16MHz)Powerdown and ldle ModesFive 8-Bit I/O Ports16-Bit Watchdog Timer12 MHz and 16 MHz AvailableDedicated 15-Bit Baud Rate GeneratorDynamically Configurable 8-Bit or 16-Bit BuswidthFull Duplex Serial PortHigh Speed I/O Subsystem16-Bit Timer16-Bit Up/Down C...
供应单片机 24LC02
信息内容：产品概述： 2K 2.5-5.5V I 2 C Serial EEPROM 应用特性： .Single supply with operation down to 1.8v.Low-power CMOS technology:---1 mA active current, typical---1 μA standby current, typical(l-temp).Organized as 1 block of 256 bytes (1×256×8).2-wire serial interface bus, l2CTM compatible.Schmitt Trigger inputs for noise suppression.Output slope control to eliminate ground bounce.400 kHz (24LC02B) compatibility.Self-timed write cycle (including auto-erase).Page write buffer for up to 8 bytes.Hardware write-protect for entire memory.Can be operated as a serial ROM.Factory programming (QTP) available.ESD protection>4,000V.1,000,000 erase/write cycles.Data retention>200 years.8-lead PDIP, SOIC ,TSSOP,DFN and MSOP packages.5-lead SOT-23 package.Pb-free finish available.Available for extended temperature ranges:---Industrial(I): -40℃ to +85℃---Automotive(E): -40℃ to +125
