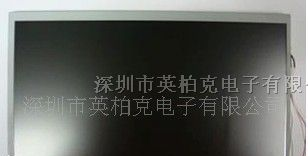

供应中华液晶屏CLAA101NC01CW
| 价 格： | 面议 | |
| 型号/规格： | CLAA101NC01CW | |
| 品牌/商标： | 中华映管 |
1. 10.1"液晶模组
2. LVDS输入接口
3. 背光亮度可定制，依客户要求，默认为18颗LED
4. CPT原装FOG,大陆组装模组
5. 应用于平板电脑，MID, Portable DVD, 多媒体显示等领域
- 所属城市：广东 韶关
- [联系时请说明来自维库仪器仪表网]
- 联系人： 罗小姐
- 电话：0755-27821716
- 传真：-
- 手机：18926752642
- QQ ：
供应中华液晶屏EP050VA01CW
信息内容：EP050VA01CW is a 800RGB*480 dots matrix TFT LCD module. It has a TFT panel composed of800 sources and 480gates. The LCM can be easily accessed by micro-controller.2. FeaturesTransmissiveDisplay Modea-TFTDisplay Format Graphic 800RGB*480 Dot-matrixInput Data RGB interfaceViewing Direction 12：00 O’CLOCKDrive OTA7001A-C OTA9966A3. Mechanical SpecificationItem Specifications UnitDimensional outline120.7(W)*75.8(H)*3.1MM(FPC not include)mmResolution 800RGB*480 dotsLCD Active area 108(W)*64.8(H) mmPixel size 0.135(W)*0.135(H) mm4. Mechanical DimensionSHENZHEN EPACK ELECTRONICS CO.,LTDEP050VA01CT SHENZHEN
供应中华液晶屏CLAA102NA01CW
信息内容：CLAA102NA01CW is 10.2” color TFT-LCD (Thin Film Transistor Liquid Crystal Display)module composed of LCD panel, driver ICs ,control circuit and backlight. By applying1024×600 images are displayed on the 10.2” diagonal screen. Display 262K colors by 6Bit R.G.B signal input.General specification are summarized in the following table:ITEM SPECIFICATIONDisplay Area (mm) 222.72(H) x 130.5(V) (10.2-inch diagonal)Number of Pixels 1024(H) × 3(RGB) × 600(V)Pixel Pitch (mm) 0.2175 (H) × 0.2175 (V)Color Pixel Arrangement RGB vertical stripeDisplay Mode Normally white, TNNumber of Colors 262,144Optimum Viewing Angle 6 o’clockBrightness (cd/m^2) 400nit(typ)Response Time (ms) 25ms (typ)Viewing Angle 14101 0d edgergeree e(H (oVreizrtoicnatal)l .)Power Consumption (with BLU) 6.6W(typ)Interface connection LVDSModule Size (mm) (w/o PWB) 235(W) ×145.8(H) × 5.9(D)Module Size (mm) (with PET) 235(W) ×145.8(H) × 7.86(D)Module Weight (g) 385g (Max)Backlight Unit CCFLSurface Treatment Anti-Glare
