MS621FE-FL11E 可充电电池
| 价 格： | 面议 | |
| 型号/规格： | MS621FE-FL11E | |
| 品牌/商标： | SII |
MS621FE
dzsc/17/8392/17839243.gifSPECIFICATIONS
Type
MS621FE
Nominal Voltage(V)
3
Charge Voltage (Standard Charge Voltage)(V)
2.8 to 3.3(3.1)
Nominal Capacity(mAh)
5.5
Internal Impedance(Ω)
80
Standard Charge Discharge Current(mA)
0.015
Maximum Discharge Current (Continuous)(mA)
0.25
Cycle Life (Time)100% D.O.D(Depth of Discharge)
100
Cycle Life (Time) 20% D.O.D(Depth of Discharge)
1000
Size Diameter(mm)
6.8
Size Height(mm)
2.1
Weight(g)
0.23
Newyes Electronics Co.,ltd新夏电子
zengjinsheng曾
Tel :(86)755-29767051;83600096．
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 齐先生
- 电话：0755-29767051/83600096
- 传真：0755-83600096
- 手机：13928496011
- QQ ：
MEV-50D-R MEMS传感器
信息内容：MEV-50D-R 长期供应，原装！ 如有需求，请电：0755-29767051,83600096,13928496011. Murata has launched a MEMS rate sensor (gyro) which features ‘excellent’ performance characteristics for the automotive market. The MEV-50D-R supports accurate dead-reckoning performance for car navigation devices, and is also aimed at GPS modules, satellite antennas and other applications such as toys, including for example a high-performance radio-control helicopter. The sensor features the second-generation of Murata’s technology – the first generation was used in Murata’s famous bicycle-riding robots, Murata boy and the unicycle-riding Murata Girl. High temperature drift performance makes signal processing easy – there is no need to adjust for temperature drift in software. Temperature drift across the entire operating range, -40C to 85C, is just 0.6 deg/s. Materials used in the construction of the rate sensor help to ensure the stable temperature performance of the device. Single-crysta...
MEMS传感器MPU-6000 MPU-6050

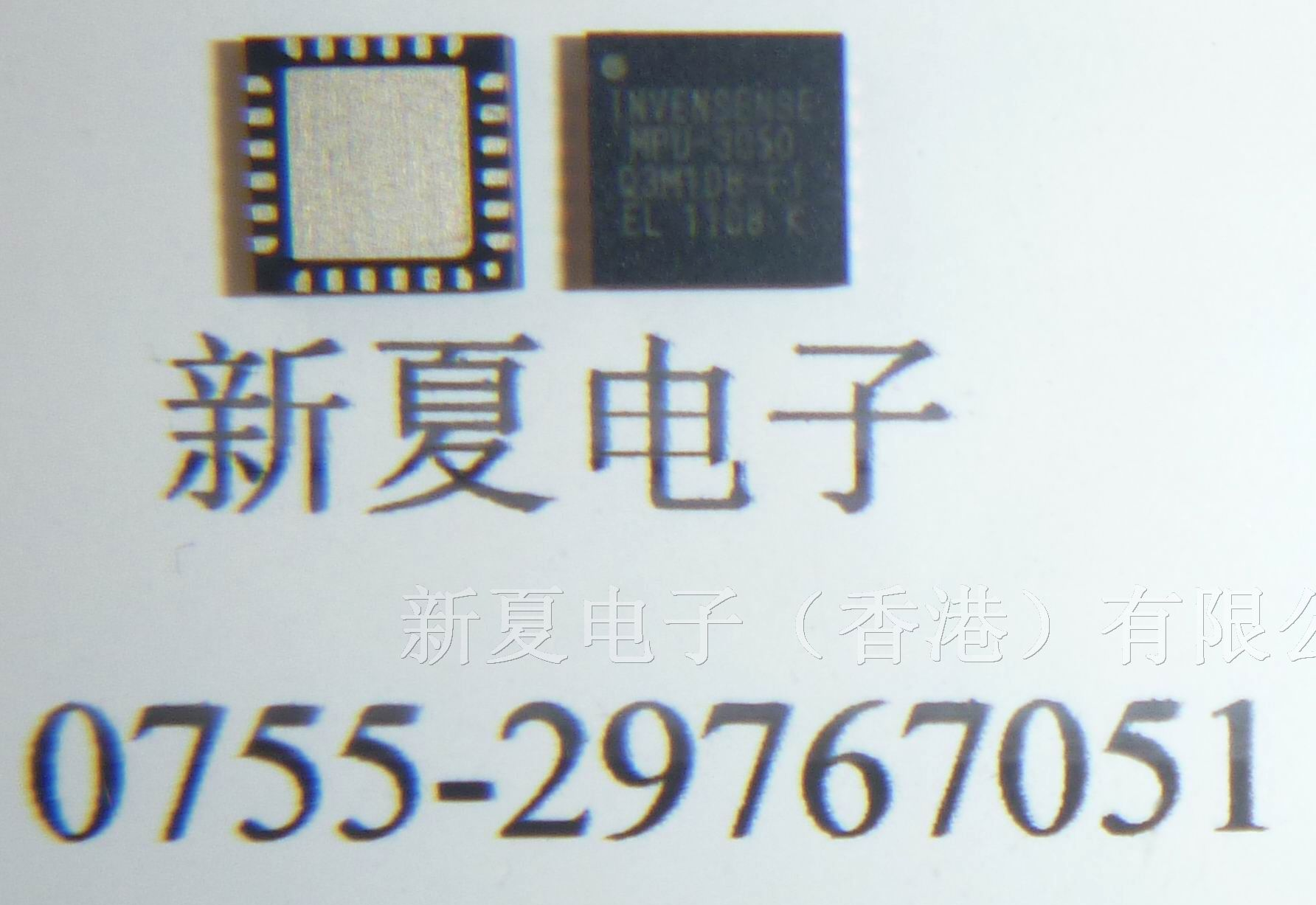

信息内容：Newyes Electronics Co.,ltd新夏电子zengjinsheng曾Tel :(86)755-29767051;83600096. Fax:(86)755-29767095. MP:(86)13928496011. MPU-6000 MPU-6050为全球首例整合3轴陀螺仪、3轴加速器、含9轴融合演算技术(sensor fusion)的运动处理组件 概述 dzsc/18/3751/18375103.png MPU-6000为全球首例整合性6轴运动处理组件，相较于多组件方案，免除了组合陀螺仪与加速器时之轴间差的问题，减少了大量的包装空间。MPU-6000整合了3轴陀螺仪、3轴加速器，并含可藉由第二个I2C端口连接其他厂牌之加速器、磁力传感器、或其他传感器的数位运动处理(DMP: Digital Motion Processor)硬件加速引擎，由主要I2C端口以单一数据流的形式，向应用端输出完整的9轴融合演算技术 InvenSense的运动处理资料库，可处理运动感测的复杂数据，降低了运动处理运算对操作系统的负荷，并为应用开发提供架构化的API。 MPU-6000的角速度全格感测范围为±250、±500、±1000与±2000°/sec (dps)，可准确追緃快速与慢速动作，并且，用户可程式控制的加速器全格感测范围为±2g、±4g±8g与±16g。产品传输可透过至400kHz的I2C或达20MHz的SPI。 MPU-6000可在不同电压下工作，VDD供电电压介为2.5V±5...
