RR21 三相马达正反转控制固态继电器 RR21 Three Phase AC Solid State Relay AC Output 面板安装固态继电器 0.5-5KW 400/480 VAC |
dzsc/17/7796/17779675.jpg |
● 内置互锁延时保护电路 ● 纯新进口元器件封装,品质保证 ● 数位孔化板,SMD贴装工艺 ● 双色LED发光管工作状态指示 ● DCB铜瓷键合基板,热循环次数高 ● 氧化锌压敏电阻过压保护,欧盟CE认证 | |
● Built-in interlock protection circuit delay ● Pure new import component packaging, quality assurance ● Hole of the digital board, SMD mount technology ● Two-color LED status indicator LED work ● DCB copper bonded ceramic substrates, the high number of thermal cycling ● Zinc oxide varistor voltage protection, the European Union CE Certification | |
◆型号说明 | |
dzsc/17/7796/17779675.jpg |
三相马达正反转固态继电器 | 工作电压范围 Operating Voltage (47-63Hz): RR2I40:170-440VAC, RR2I48:170-530VAC |
峰值电压 Transient Overvoltage: 1200Vp 1600Vp | |
工作电流范围 Maximun Load Current: 0.5KW:16A, 1.5KW:25A, 3.0KW:40A, 5.0KW:80A | |
断态漏电流 Maximum Off-State Leakage Current: ≤3mA | |
应答动作时间 Maximum Turn-On off Time: ON≤10mS, Off≤10mS | |
绝缘电压 Dielectric Strength, Input/Output/Base:≥2500VAC 1Mni | |
绝缘强度 Minimum Insulation Resistance: 500MΩ/500VDC | |
工作温度 Ambient Operating Temperature Range: -20℃~+70℃ |
RR21三相马达正反转控制固态继电器RR21Single Phase AC Solid State RelayDCOutput 面板安装固态继电器10-150Amp60/100/200/400 VDC dzsc/17/7796/17779676.jpg ● 内置互锁延时保护电路● 纯新进口元器件封装,品质保证● 功率MOS管输出,SMD贴装工艺● 双色LED发光管工作状态指示● TVS瞬变二极管过电压保护 ● Built-in interlock protection circuit delay● Pure new import component packaging, quality assurance● Hole of the digital board, SMD mount technology● Two-color LED status indicator LED work● DCB copper bonded ceramic substrates, the high number of thermal cycling● Zinc oxide varistor voltage protection, the European Union CE Certification ◆型号说明 dzsc/17/7796/17779676.jpg 三相马达正反转固态继电器 工作电压范围 Operating Voltage (47-63Hz): RR2I40:170-440VAC, RR2I48:170-530VAC 峰值电压 Transient Overvoltage: 1200Vp 1600Vp 工作电流范围 Maximun Load Current: 0.5KW:16A, 1.5KW:25A, 3.0KW:40A, 5.0KW:80A 断态漏电流 Maximum Off-State Leakage Current: ...

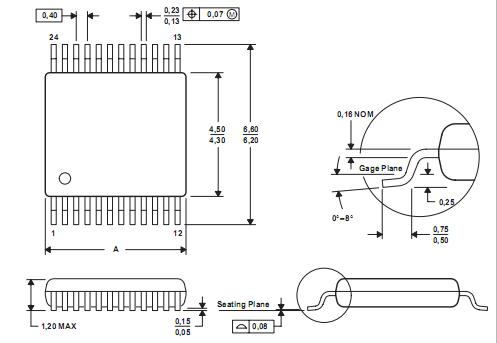

说明 These octal buffers/drivers are designed for 2-V to 5.5-V VCC operation. The 'LV240A devices are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. These devices are organized as two 4-bit buffers/line drivers with separate output-enable (OE\) inputs. When OE\ is low, the device passes data from the A inputs to the Y outputs. When OE\ is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. 特性 2-V to 5.5-V VCC Operation Max tpd of 6.5 ns at 5 V Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C Typical VOHV (Output VOH Undershoot) >2.3 V at VCC = 3.3 V, TA = 25°C Support Mixed-Mode Voltage Operation on Al...
