3RLAB电阻3r-100 无感高频电阻
| 价 格： | 面议 | |
| 型号/规格： | 3r-100 | |
| 品牌/商标： | 3rlab | |
| 环保类别： | 无铅环保型 | |
| 产品主要用途： | | |
| 功率分类： | | |
| 精度类别： | | |
| 外形结构特征： | | |
| 引出线类型： | | |
| 包装形式： | |
感的設計特別適合使用於高頻率或是連續脈衝設備。同時電阻直
接安裝於散熱器上可有效為您節省一筆散熱器的開銷。3R-100(TO-227)系列則可提供兩個接點或四
個接點的產品以達到三倍的電阻效能。全系列產品皆可用於各種精密產品如變速系統、電力
供應、控制系統、電信系統、自動機器人系統、機械控制、動力控制，或各種交換式系統、RF無
線系統等等
- 所属城市：陕西 西安
- [联系时请说明来自维库仪器仪表网]
- 联系人： 白卫平
- 电话：029-88541186
- 传真：029-88221540
- 手机：13720772046
- QQ ：
CADDOCK TG931高压电阻
信息内容：CADKDOC TG931 TG940 TG950 TG980 TG985 TG1010 TG1015To meet the precision temperature stability requirements of high accuracy, high voltage systems, Caddock introduces the Type TG Low TC Precision High Voltage Resistors.These resistors utilize our proven Tetrinox® resistancesystem to achieve the unique combination of low temperaturecoefficient with high stability performance at high operatingvoltages.The Type TG Low TC Precision High Voltage Resistors are designed to meet the demanding stability requirements of TWT power supplies, electron microscopes, X-ray systems, high resolution CRT displays, and geophysical instruments.Type TG Low TC Precision High Voltage ResistorsAll Type TG resistors are produced with Caddock's Non-inductive Serpentine Pattern.The performance features of the Type TG Low TC Precision High Voltage Resistors are:• Temperature Coefficient: 25 ppm/°C from -55°C to +125°C.• Load Life Stability of 0.25% per 1,000 hours at +125°C.• Resista...

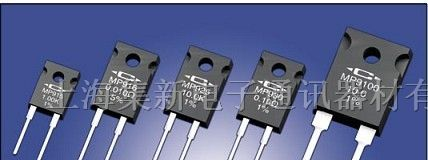

供应CADDOCK电流传感电阻器MP9100-0.050-1%
信息内容：Low Cost Heat Sink Mountable Design featuringan Exposed Ceramic Heat Dissipating Mounting Surface Use your thermal design experience with power semiconductors in TO-126, TO-220,and TO-247 style power packages to help you get the most out of this unique family ofpower resistors. The thermal design issues are the same where power handlingcapability is based on the case temperature which is maintained in your design MP915 TO-126 Style Power Package 15 Watts at +25°C Case Temperature, derated to zero at +150°C.Exposed Ceramic Heat Dissipating Mounting Surface.Resistance Range of 0.020 ohm to 1 K.Non-Inductive Design. MP916, MP925, and MP930 TO-220 Style Power Package Up to 30 Watts at +25°C Case Temperature, derated to zero at +150°C.Exposed Ceramic Heat Dissipating Mounting Surface.Resistance Range of 0.010 ohm to 100 K.Non-Inductive Design. MP9100 TO-247 Style Power Package 100 Watts at +25°C Case Temperature, derated to zero at +175°C.Exposed Ceramic Heat Dissipating Mo...
