价 格: | 面议 | |
型号/规格: | TG931 | |
品牌/商标: | CADDOCK | |
环保类别: | 无铅环保型 | |
产品主要用途: | 精密电子仪器仪表 | |
功率分类: | | |
精度类别: | | |
外形结构特征: | | |
引出线类型: | | |
包装形式: | |
CADKDOC TG931 TG940 TG950 TG980 TG985 TG1010 TG1015
To meet the precision temperature stability requirements of high accuracy, high voltage systems, Caddock introduces the Type TG Low TC Precision High Voltage Resistors.
These resistors utilize our proven Tetrinox® resistance
system to achieve the unique combination of low temperature
coefficient with high stability performance at high operating
voltages.
The Type TG Low TC Precision High Voltage Resistors are designed to meet the demanding stability requirements of TWT power supplies, electron microscopes, X-ray systems, high resolution CRT displays, and geophysical instruments.
Type TG Low TC Precision High Voltage Resistors
All Type TG resistors are produced with Caddock's Non-inductive Serpentine Pattern.
The performance features of the Type TG Low TC Precision High Voltage Resistors are:
• Temperature Coefficient: 25 ppm/°C from -55°C to +125°C.
• Load Life Stability of 0.25% per 1,000 hours at +125°C.
• Resistance Tolerance from ±1.0% to ±0.1%.
• Resistance Range from 1 Megohm to 1,000 Megohms.
• Maximum Continuous Operating Temperature of +225°C.
• The low temperature coefficient minimizes the self-drift due to power dissipation warm-up.
TG985
TG980
TG950
TG931
TG1010
TG1015
TG940
TC of 25 ppm/°C from -55°C to +125°C, Resistance Range from 1 Megohm to 1,000 Megohms1.500 ± .125(38.10 ± 3.18)ABCAMBIENT TEMPERATURE, °C1008060402002575125175225275RATED POWER ORRATED VOLTAGE, %
Derating Curve:
DIMENSIONS IN INCHES AND (MILLIMETERS)
Dielect
.StrengthMax.ContinuousOper. Volt.Watt-ageModelNo.ABCDimensions in inches and (millimeters)ResistanceMin.Max.TG9311.000 ±.060(25.40 ±1.52) .315 ±.030(8.00 ±.76) .040 ±.002(1.02 ±.05)TG940 1.500 ±.060(38.10 ±1.52) .315 ±.030(8.00 ±.76) .040 ±.002(1.02 ±.05)TG9502.125 ±.060(53.98 ±1.52) .315 ±.030(8.00 ±.76) .040 ±.002(1.02 ±.05)TG9803.125 ±.060(79.38 ±1.52) .315 ±.030(8.00 ±.76) .040 ±.002(1.02 ±.05)TG985 4.000 ±.120(101.60 ±3.05) .315 ±.030(8.00 ±.76) .040 ±.002(1.02 ±.05)TG1010 5.000 ±.120(127.00 ±3.05) .315 ±.030(8.00 ±.76) .040 ±.002(1.02 ±.05)TG1015 6.000 ±.120(152.40 ±3.05).350 ±.040(8.89 ±1.02) .040 ±.002(1.02 ±.05)1.01.52.03.04.05.06.04,0006,00010,00015,00020,00025,00030,0007507501,0001,0001,0001,0001,00025252525252525 1 Meg 1.5 Meg 2 Meg 3 Meg 4 Meg 5 Meg 6 Meg50 Meg100 Meg200 Meg300 Meg400 Meg500 Meg1000 MegTCppm/°C-15Min.40 Meg64 Meg128 Meg192 Meg320 Meg400 Meg384 Meg
Extended Maximum Continuous Operating Voltage Rating
Maximum continuous operating voltages up to 60% higher than the values listed
in the table can be achieved through special factory conditioning. To specify maximum continuous operating voltages above the values listed in the table, add a "-15" to the model number (Example: TG950-15). Note that the standard overload and overvoltage ratings do not apply to the "-15" resistors. Resistance range for "-15" resistors shown in the table are from "-15 Min." to "Max."
Combine Type TG and Type TK Resistors for Low Ratio TC Tracking
The Type TG Low TC Precision High Voltage Resistors can be
used in combination with the low Absolute Temperature Coefficient of
the Type TK Low TC Precision Radial-Lead Film Resistors
(Model TK133 with TC of 5 ppm/°C) to achieve 30 ppm/°C Ratio
TC without special matching.
With special matching, a Ratio TC of 10 ppm/°C can be achieved.
The low temperature coefficient for both the Type TG
and Type TK resistors will also minimize ratio drift due
to power dissipation warm-up.
Certain products shown in this catalog are covered by one or more patents, there are also patents pending.
Specifications:
Resistance Tolerance: ±1% (tolerances to 0.1% on special order).
Temperature Coefficient: 25 ppm/°C refer-enced to +25°C, ΔR taken at -55°C and +125°C.
Insulation Resistance: 10,000 Megohms, min.
Overload/Overvoltage: 5 times rated power with applied voltage not to exceed 1.5 times maximum continuous operating voltage for 5 seconds.
ΔR 0.20% max.
Thermal Shock: Mil-Std-202, Method 107, Cond. B, ΔR 0.20% max.
Moisture Resistance: Mil-Std-202, Method 106, ΔR 0.20% max.
Load Life: 1,000 hours at +125°C at rated
voltage, not to exceed rated power, ΔR 0.25%.
Solderable Leads
Encapsulation: High Temperature Silicone
Conformal.
N
Non-inductiveperformance withCaddock's exclusive design
28_IL111.1004
Low Cost Heat Sink Mountable Design featuringan Exposed Ceramic Heat Dissipating Mounting Surface Use your thermal design experience with power semiconductors in TO-126, TO-220,and TO-247 style power packages to help you get the most out of this unique family ofpower resistors. The thermal design issues are the same where power handlingcapability is based on the case temperature which is maintained in your design MP915 TO-126 Style Power Package 15 Watts at +25°C Case Temperature, derated to zero at +150°C.Exposed Ceramic Heat Dissipating Mounting Surface.Resistance Range of 0.020 ohm to 1 K.Non-Inductive Design. MP916, MP925, and MP930 TO-220 Style Power Package Up to 30 Watts at +25°C Case Temperature, derated to zero at +150°C.Exposed Ceramic Heat Dissipating Mounting Surface.Resistance Range of 0.010 ohm to 100 K.Non-Inductive Design. MP9100 TO-247 Style Power Package 100 Watts at +25°C Case Temperature, derated to zero at +175°C.Exposed Ceramic Heat Dissipating Mo...

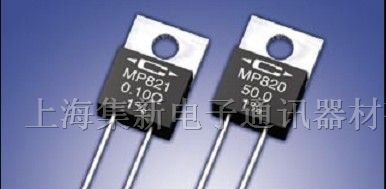

MP820 and MP821 TO-220 Style Power Packagewith Metal Mounting Tab • 20 Watts at +25°C Case Temperature derated to zero at +175°C.• Metal Heat Sink Mounting Tab.• MP820 Resistance Range of 10.0 ohm to 10.0 K.• MP821 Resistance Range of 0.020 ohm to 9.99 ohm.• Resistor element is electrically isolated from the mounting surface.• Non-Inductive design for high speed switching, snubbers,and rf applications.
