供应MAU124模块电源24Vin→12Vout 84mA
| 价 格： | 面议 | |
| 型号/规格： | MAU124 | |
| 品牌/商标： | MINMAX |
| 参数 | 说明 |
| Description | 直流转直流-单组-电源转换器 |
| DCVout | 12V |
| Current | 84mA |
| Watts | 1W |
| Efficiency % | 78% |
| DCVin | 21.6~26.4V |
| 重量 |
产品特点:
■ 定电压输入，非稳压单输出
■ 7PIN标准引脚封装，外形尺寸19.60×6.00×10.20mm
■ 输出功率：1W
■ 隔离高压：1000VDC
■ 工作温度：-40℃～+85℃
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：

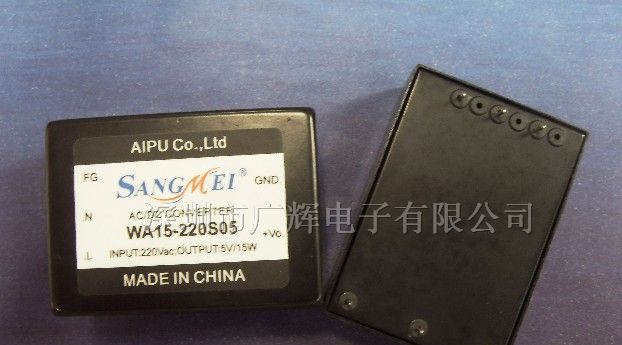

供应AC/DC电源模块WA15-220S05
信息内容：产品型号 产品类型 输入电压 输出电压 输出电流 输出功率 1.WD50-□D24 DC-DC模块电源 12V,24V,48V,110V +24V,-24V 1100mA 50W 2.WD75-□S05 DC-DC模块电源 12V,24V,48V,110V 5V 15000mA 75 W 3.WD75-□S12 DC-DC模块电源 12V,24V,48V,110V 12V 6250mA 75W 4.WD75-□S24 DC-DC模块电源 12V,24V,48V,110V 24V 3100mA 75W 5.WD75-□D05 DC-DC模块电源 12V,24V,48V,110V +5V,-5V 7500mA 75W 6.WD75-□D12 DC-DC模块电源 12V,24V,48V,110V +12V,-12V 3100mA 75W 7.WD75-□D24 DC-DC模块电源 12V,24V,48V,110V +24V,-24V 1550mA 75W 8.WD100-□S12 DC-DC模块电源 12V,24V,48V,110V 12V 8300mA 100W 9.WD100-□S15 DC-DC模块电源 12V,24V,48V,110V 15V 6600mA 100W 10.WD100-□S24 DC-DC模块电源 12V,24V,48V,110V 24V 4200mA 100W 11.WD150-□S12 DC-DC模块电源 12V,24V,48V,110V 12V 12500mA 150W 12.WD150-□S15 DC-DC模块电源 12V,24V,48V,110V 15V 10000mA 150W 13.WD150-□S24 DC-DC模块电源 12V,24V,48V,110V 24V 6250mA 150W 14.WD150-□S05 DC-DC模...

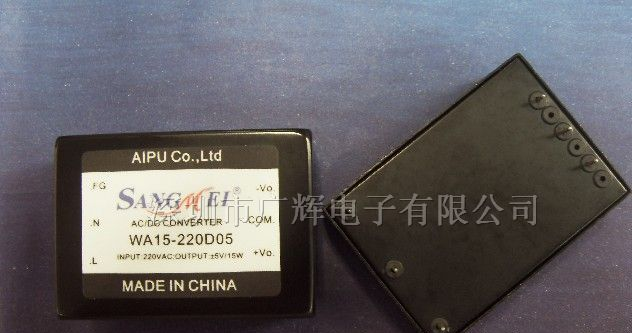

供应AC/DC电源模块WA15-220D05,KWD15-0505
信息内容：Technical/Catalog InformaTION KWD15-0505 Vendor TDK-LAMBDA AMERICAS INC Category Power Supplies Number of Outputs 2 Power (Watts) 15W Voltage - Output ±5V Voltage - Input 85 ~ 265VAC Power Supply Type Switching (Closed Frame) 1st Output 5 VDC @ 1500mA 2nd Output -5 VDC @ 1500mA 3rd Output - 4th Output - Mounting Type Through Hole Size / Dimension 2.75" L x 1.89" W x 0.93" H (70mm x 48mm x 23.5mm) Operating Temperature -10°C ~ 70°C Efficiency 73% Applications Commercial Approvals CE, CSA, TUV, UL Line Regulation 0.4% Load Regulation 0.8% Power (Watts) - Rated 15W Lead Free Status Lead Free RoHS Status RoHS Compliant Other Names KWD15 0505KWD150505 典型性能 Typical performance ◆ 宽范围输入Wide Input voltage range ◆ 转换效率Typical Efficiency （典型80%） ◆ 开关频率Switching frequency：100 KHz ◆ 过流、短路保护，自恢复Over current/Short cIRcuit protecTIon,Self-furbish ◆ 输入...
