供应AC/DC电源模块WA15-220D05,KWD15-0505
| 价 格： | 面议 | |
| 型号/规格： | WA15-220D05,KWD15-0505 | |
| 品牌/商标： | SANGMEI/TDK |
| Technical/Catalog InformaTION | KWD15-0505 |
| Vendor | TDK-LAMBDA AMERICAS INC |
| Category | Power Supplies |
| Number of Outputs | 2 |
| Power (Watts) | 15W |
| Voltage - Output | ±5V |
| Voltage - Input | 85 ~ 265VAC |
| Power Supply Type | Switching (Closed Frame) |
| 1st Output | 5 VDC @ 1500mA |
| 2nd Output | -5 VDC @ 1500mA |
| 3rd Output | - |
| 4th Output | - |
| Mounting Type | Through Hole |
| Size / Dimension | 2.75" L x 1.89" W x 0.93" H (70mm x 48mm x 23.5mm) |
| Operating Temperature | -10°C ~ 70°C |
| Efficiency | 73% |
| Applications | Commercial |
| Approvals | CE, CSA, TUV, UL |
| Line Regulation | 0.4% |
| Load Regulation | 0.8% |
| Power (Watts) - Rated | 15W |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | KWD15 0505 KWD150505 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：

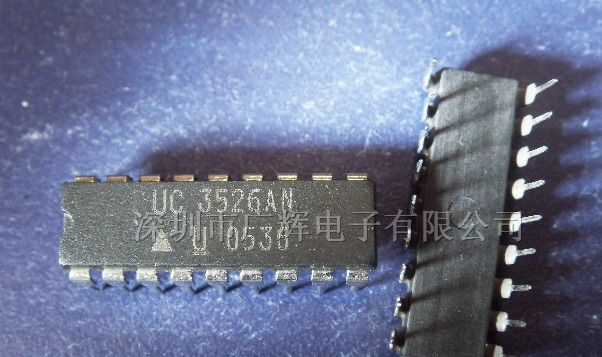

供应PWM控制器>稳压脉宽调制器UC3526AN
信息内容：电源管理 > AC/DC 和 DC/DC 电源> PWM 控制器> 稳压脉宽调制器 UC3526AN 说明 The UC1526 is a high performance monolithic pulse width modulator circuit designed for fixed-frequency switching regulators and other power control applications. Included in an 18-pin dual-in-line package are a temperature compensated voltage reference, sawtooth oscillator, error amplifier, pulse width modulator, pulse metering and setting logic, and two low impedance power drivers. Also included are protective features such as soft-start and under-voltage lockout, digital current limiting, double pulse inhibit, a data latch for single pulse metering, adjustable deadtime, and provision for symmetry correction inputs. For ease of interface, all digital control ports are TTL and B-series CMOS compatible. Active LOW logic design allows wired-OR connections for maximum flexibility. 特性 8 To 35V Operation 5V Reference Trimmed To ±1% 1Hz To 400kHz Oscillator Range Dual 100mA Source/...
供应CCG81型板形高功率瓷介电容器 CCG81-5、CCG81-6
信息内容：CCG81型板形高功率陶瓷电容器，在本公司已有三十多年的生产历史，是本公司的支柱产品。工艺成熟、产品质量稳定可靠、品种齐全。该产品具有耐电压高、介质损耗低、无功功率大、高频性能好、使用寿命长和安装方便等特点。产品主要用于高频焊管、高频干燥、高频电炉、塑料热合机及无线电通信设备中。该产品远销欧美、东南亚和全国各地，深受国内外客户的好评。 dzsc/17/6454/17645429.jpg CCG81型板形高功率陶瓷电容器 型号 标称电容量 额定电压(KV) 无功功率 电流 主要尺寸(mm) 温度系数 (PF) DC HF(RMS) (KVA) (A) D H 铜螺母 (PPM/ ℃ ) CCG81-0 100 5 4 30 15 35 21 M6 -750 150 200 40 300 45 8 5 40 46 330 5 4 48 8 5 50 350 8 5 51 CCG81-1 100 15 12 60 20 58 37 M6 150 60 200 36 250 35 300 10 8 34 12 10 35 15 13 65 350 10 8 60 34 12 10 62 500 10 8 33 600 64 CCG81-2 500 12 10 65 25 70 34 M6 750 10 8 33 CCG81-3 300 12 10 75 30 78 36 M6 15 12 37 ...
