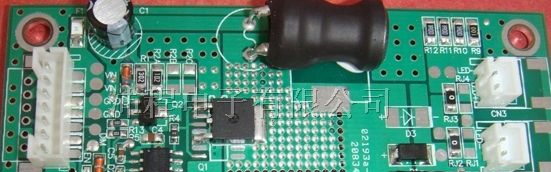

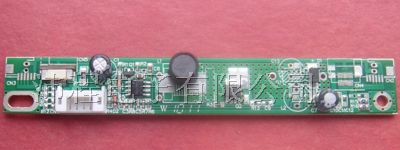

LED升压板│LED恒流板│LED背光驱动板LDA40V360M
| 价 格： | 面议 | |
| 型号/规格： | LDA40V360M | |
| 品牌/商标： | PACIT |
|
产品名称:LED DRIVER 应用:LED PANEL 输入电压范围：10.8~24V (可根据客户要求调节) 输出:40V/30mA 12个通道 MAX:67V/600mA 输出功率:20W(MAX) 适用于:MT230DW01 LED PANEL (板上设计有多种接口，可以匹配18.5~24"LED PANEL) 尺寸: 122*18*10(mm) |
| 产品参数： |
|
产品名称:LED DRIVER 应用:LED PANEL 输入电压范围：10.8~24V (可根据客户要求调节) 输出:40V/30mA 12个通道 MAX:67V/600mA 输出功率:20W(MAX) 适用于:MT230DW01 LED PANEL (板上设计有多种接口，可以匹配18.5~24"LED PANEL) 尺寸: 122*18*10(mm) |
- 所属城市：广东 珠海
- [联系时请说明来自维库仪器仪表网]
- 联系人： 杨小姐
- 电话：0756-3818829
- 传真：0756-3818826
- 手机：
- QQ ：
LED升压板│LED恒流板│LED背光驱动板 LDA02-42V120A
信息内容：产品特性： 1. General description Scope: This LDA02-42V120A sepic LED driver for 18.5” of LCD backlight system. 2. Applications 18.5” LED Backlight LCD panels For M185XW01. 3. Absolute maximum rating l Input supply voltage .: 11~13V l Input current . : 0.7A(MAX) l Input power : 7.13W l Output current : 22mA X 6CH l Output power : 6.28W l Brightness adjusted voltage : 0V(MAX)~5.0V(MIN) l Input signal voltage :0V/OFF 5.0V/ON (ON/OFF/control) l Ambient operating temperature :0℃~40℃ l Storage temperature :-20℃~80℃ l Operating & storage humidify: 10%~85% l Over voltage protect(OVP) l High efficency (TYP:88%) 4.Electrical Requirements 4.1Input Characteristics This section defines the electrical requirements for the LED driver PARAME...
LED升压板│LED恒流板│LED背光驱动板LDA07-45V300X2
信息内容：1. General description Scope: This LDA07-45V300X2 sepic LED driver for 26” of LCD backlight system. 2. Applications 26” LED Backlight LCD panels For V260B2-DE03 K2.0. 3. Absolute maximum rating l Input supply voltage .: 22~24V l Input current . : 1.1A(MAX) l Input power : 23.71W l Output current : 462mA X 2CH l Output power : 21.34W l Brightness adjusted voltage : NC l Input signal voltage :0V/ON 5.0V/OFF (ON/OFF/control) l Ambient operating temperature :0℃~40℃ l Storage temperature :-20℃~80℃ l Operating & storage humidify: 10%~85% l Over voltage protect(OVP) l High efficency (TYP:90%) 产品参数： 4.Electrical Requirements 4.1Input Characteristics This section defines the electrical requirements for the LED driver PARAMETER SYM...
