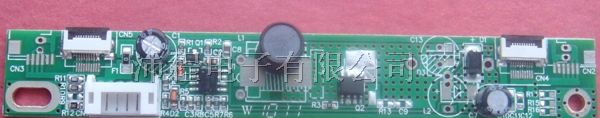

LED升压板│LED恒流板│LED背光驱动板LDA07-45V300X2

价格：		面议
型号/规格：		26"LED恒流板LDA07-45V300X2
品牌/商标：		PACIT

详细介绍
企业详情

1. General description

Scope:

This LDA07-45V300X2 sepic LED driver for 26” of LCD backlight system.

2. Applications

26” LED Backlight LCD panels For V260B2-DE03 K2.0.

3. Absolute maximum rating

l Input supply voltage .: 22~24V

l Input current . : 1.1A(MAX)

l Input power : 23.71W

l Output current : 462mA X 2CH

l Output power : 21.34W

l Brightness adjusted voltage : NC

l Input signal voltage :0V/ON 5.0V/OFF (ON/OFF/control)

l Ambient operating temperature :0℃~40℃

l Storage temperature :-20℃~80℃

l Operating & storage humidify: 10%~85%

l Over voltage protect(OVP)

l High efficency (TYP:90%)

产品参数：

4.Electrical Requirements

4.1Input Characteristics

This section defines the electrical requirements for the LED driver

PARAMETER	SYMBOL	MIN	TYP	MAX	UNIT	REMARK
Input voltage	VIN	22.0	24.0	26.0	V
Input current	Iin	-	1.28	1.7	A	Vin=24V RL= V260B2-DE03 K2 Panel
Input power	Pin	-	30.8	36.96	W	Vin=24V RL= V260B2-DE03 K2 Panel
Input voltage	Von/off	1.0	5.0	5.5	V	Off State
Input voltage	Von/off	-	0	0.6	V	On State
Bright adjust	Dim	-	-	-	V	NC
Efficiency	η	-	90	-	%	Vin=24V RL= V260B2-DE03 K2 Panel

4.2 Output Characteristics:

4.2.1 DC output J11,J12:

PARAMETER	SYMBOL	MIN	TYP	MAX	UNIT	REMARK
Output current (1CH)	IRLED	270	300	330	mA	Vin=24V RL= V260B2-DE03 K2 Panel
Output current (1CH)	IRLED	0	-	60	mA	Vadj=5V RL= V260B2-DE03 K2 Panel
Output voltage	VLB	-	46.2	50.4	V	Vin=24V RL= V260B2-DE03 K2 Panel
Output power	PO	-	27.72	33.26	W	Vin=24V RL= V260B2-DE03 K2 Panel
Over voltage	OVP	56	57	58		LATCH

5.0 Connector:

5.1 DC input connector

5.1.1Connector type (CN1): S7BPHA (7P 2.0mm)

Pin number	Output Name
1,2	Input voltage
3,4,6	GND
5	Vadj
7	On/off

5.2 Output connector

5.2.1、Connector type（J11,J12）: S2BPHA (2P 2.0mm)

Pin number	Output Name
1	VLED(Voltage in)
2
