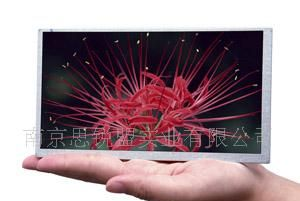

供应群创原装7寸数字液晶屏AT070TN83
| 价 格： | 面议 |
种类:LCD系列产品 品牌:innolux 型号:AT070TN83 V.1
1 LCD size 7.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 800X3(RGB)X480
4 Display mode Normally white, Transmissive
5 Dot pitch 0.0635(W)X0.1905(H) mm
6 Active area 152.4 (W)X91.44 (H) mm
7 Module size 165(W)X104(H)X5.5(D) mm Note 1
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
10 Interface Digital(TTL)
11
Backlight power
consumption
2.500W(Typ.) Note 3
12 Panel power consumption 0.825W(Typ.) Note 2
13 Weight 130g (Typ.)
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 黄熙承
- 电话：0755-83954981
- 传真：0755-83954981
- 手机：
- QQ ：
供应群创原装10.2寸液晶屏AT102TN43
信息内容：1 LCD size 10.2 inch(Diagonal)2 Driver element a-Si TFT active matrix3 Resolution 1024X3(RGB)X6004 Display mode Normally white, Transmissive5 Dot pitch 0.0722(W)X0.2192(H) mm6 Active area 221.7984 (W)X131.52 (H) mm7 Module size 235.0(W)X145.8(H)X7.55(D) mm Note 18 Surface treatment Anti-Glare9 Color arrangement RGB-stripe10 Interface Digital (LVDS)11 Backlight power consumption 3.500W(Typ.)12 Panel power consumption 0.990W(Typ.)13 Weight TBD
FCS供应群創5寸寬液晶屏AT050TN33v.1
信息内容：AT050TN33AT050TN33 V.15.0''5.0''120.70X75.80X4.25120.70X75.80X3.1w/iw/o110.88X62.832110.88X62.832TransmissiveTransmissive480X3(RGB)X272480X3(RGB)X27250/70/70/7050/70/70/7016:916:9300(350)50050025250.077(W)X0.231(H)0.077(W)X0.231(H)1101100.8550.87583TBDDigital ( 40 Pin,24bit)Digital ( 40 Pin,24bit)12LEDs12LEDs-20~70-20~70-30~80-30~8040℃,90% RH60℃,90% RH-_"
