光电器件 光纤转换器
| 价 格： | 20.00 |
品牌:厦门安迪光电 型号:SFP- -YAS-3124-1LX 种类:收发器 输出形式:功率型 速度:高速 通道:多通道 输出波长:1310（nm）
YAS-3112-1LX
622Mbps SFP Transceiver
Feature
•Up to 1.25Gbps bi-directional data links
• Hot-pluggable SFP footprint
• 1310nm Fabry-Perot laser transmitter
• Duplex LC connector
• RoHS compliant and Lead Free
• Up to 20 km on 9/125μm SMF
• Metal enclosure for lower EMI
• Single power supply 3.3V
• Low power dissipation <500mW typical
• Commercial operating temperature range: 0°C to 70°C
APPLICATIONS
l Fast Ethernet
l Switch to switch interface
l Switched backplane applications
Andylight YAS-3112-1Lx Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)4. They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.31and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.03. They are RoHS compliant and lead-free per Directive 2002/95/EC5.
- 所属城市：福建 厦门
- [联系时请说明来自维库仪器仪表网]
- 联系人： 黄益强
- 电话：592-5963816
- 传真：592-5963816
- 手机：
- QQ ：

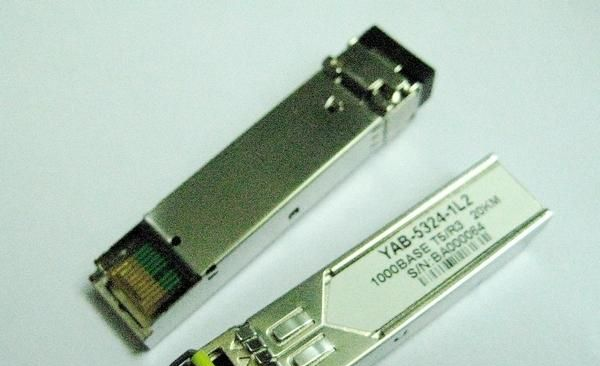

供应以太网光纤收发器SFP YAB5324
信息内容：品牌:安迪光电 型号:YAB5324-1L2 种类:收发器 输出波长:1550/1310（nm）可以向广大客户提供从155Mbps到10Gbps的全系列的光纤收发模块：SFP系列、GBIC系列、SFF系列、1x9系列等。YAB-5324-1L2 1.25Gbps Bi-directional SFP Transceiver Featuresl Compliant with IEEE802.3z Gigabit Ethernetdzsc/17/3474/17347431.jpg Standardl Compliant with Fiber Channel 100-SM-LC-Lstandardl Industry standard small form pluggable (SFP)packagel Simplex LC connectorl Differential LVPECL inputs and outputsl Single power supply 3.3Vl TTL signal detect indicatorl Hot Pluggablel Class 1 laser product complies with EN 60825-1l RoHS Compliant Applicationsl Gigabit Ethernet Applicationl Point-to-Point FTTX Application The YAB-5324-1LXSmall Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3...
光电 光纤转换器SFP-YAM8524
信息内容：品牌:厦门安迪 型号:YAM8524 种类:收发器 波段范围:其他 运转方式:单模式 速度:高速 通道:双通道 输出波长:850（nm）从155Mbps到10Gbps的全系列的光纤收发模块：SFP系列、GBIC系列、SFF系列、1x9系列 YAM-8524-1LS1.25Gbps SFP Transceiver dzsc/17/3956/17395658.jpg Features l Up to 1.25 Gbps bi-directional data linksl Hot-pluggable SFP footprintl 850nm Oxide VCSEL laser transmitterl Duplex LC connector l RoHS Compliant and Lead-Freel Up to 500m on 50/125μm MMF,300m on 62.5/125μm MMFl Metal enclosure, for lower EMIl Single power supply 3.3Vl Low power dissipationl Commercial operating temperature range: 0°C to 70°C APPLICATIONS l 1.25 Gbps 1000Base-SX Ethernetl Dual Rate 1.063 Gbps Fibre Channel The YAS-8524-1LSSmall Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatibl...
