供应以太网光纤收发器SFP YAB5324
| 价 格： | 145.00 |
品牌:安迪光电 型号:YAB5324-1L2 种类:收发器 输出波长:1550/1310（nm）
可以向广大客户提供从155Mbps到10Gbps的全系列的光纤收发模块：SFP系列、GBIC系列、SFF系列、1x9系列等。
YAB-5324-1L2
1.25Gbps Bi-directional SFP Transceiver
Features
l Compliant with IEEE802.3z Gigabit Ethernetdzsc/17/3474/17347431.jpg
|
l Compliant with Fiber Channel 100-SM-LC-L
standard
l Industry standard small form pluggable (SFP)
package
l Simplex LC connector
l Differential LVPECL inputs and outputs
l Single power supply 3.3V
l TTL signal detect indicator
l Hot Pluggable
l Class 1 laser product complies with EN 60825-1
l RoHS Compliant
Applications
l Gigabit Ethernet Application
l Point-to-Point FTTX Application
The YAB-5324-1LXSmall Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.32and Fibre Channel FC- PI-2 Rev. 7.03. They are RoHS compliant and lead-free per Directive 2002/95/EC4
- 所属城市：福建 厦门
- [联系时请说明来自维库仪器仪表网]
- 联系人： 黄益强
- 电话：592-5963816
- 传真：592-5963816
- 手机：
- QQ ：
光电 光纤转换器SFP-YAM8524
信息内容：品牌:厦门安迪 型号:YAM8524 种类:收发器 波段范围:其他 运转方式:单模式 速度:高速 通道:双通道 输出波长:850（nm）从155Mbps到10Gbps的全系列的光纤收发模块：SFP系列、GBIC系列、SFF系列、1x9系列 YAM-8524-1LS1.25Gbps SFP Transceiver dzsc/17/3956/17395658.jpg Features l Up to 1.25 Gbps bi-directional data linksl Hot-pluggable SFP footprintl 850nm Oxide VCSEL laser transmitterl Duplex LC connector l RoHS Compliant and Lead-Freel Up to 500m on 50/125μm MMF,300m on 62.5/125μm MMFl Metal enclosure, for lower EMIl Single power supply 3.3Vl Low power dissipationl Commercial operating temperature range: 0°C to 70°C APPLICATIONS l 1.25 Gbps 1000Base-SX Ethernetl Dual Rate 1.063 Gbps Fibre Channel The YAS-8524-1LSSmall Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatibl...
通信产品SFP光纤收发器YAS

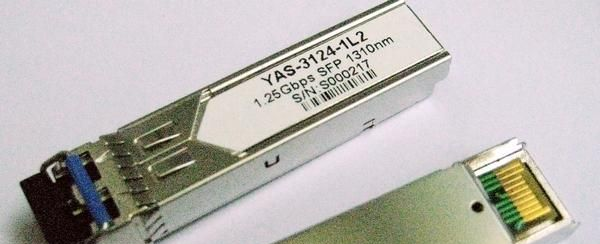

信息内容：品牌:Andylight 型号:YAS3124-1L2 接口类型:卡接口 线缆类型:光纤 传输距离:80以上（m） 传输方式:光波 发射波长:1310（nm） 发射功率:-9---3（dbm） 电压输入:3.3（V）向广大客户提供从155Mbps到10Gbps的全系列的光纤收发模块：SFP系列、GBIC系列、SFF系列、1x9系列等 1.25Gbps SFP TransceiverFeature•Up to 1.25Gbps bi-directional data links dzsc/18/2200/18220057.jpg • Hot-pluggable SFP footprint• 1310nm Fabry-Perot laser transmitterdzsc/18/2200/18220057.jpg• Duplex LC connector• RoHS compliant and Lead Free• Up to 10 km on 9/125μm SMF • Metal enclosure for lower EMI• Single power supply 3.3V• Low power dissipation <500mW typical • Commercial operating temperature range: 0°C to 70°C APPLICATIONS• 1.25Gbps 1000Base-LX Ethernet• 1.06 Gbps Fibre Channel Andylight YAS-3124-1L2 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Facto...
