供应信号继电器RS-12/20.2*10*12
| 价 格： | 面议 | |
| 型号/规格： | RS-5/RS-9/RS-12/RS-24 | |
| 品牌/商标： | RELAY RAYEX |
■FEATURES 特点 dzsc/17/2703/17270311.gif
·2 Form C Contact
触点形式为2组转换
·DIL Pitch terminals
·Fully sealed
完全密封
·Application:Household Electric Appliance,
Automatic System,Remote Control
应用于家用电器,自动化设备,小型控制器等
·UL File No.E147052
■SPECIFICATIONS 规格表
Model No. 型号
RS
Contact Arrangement 触点形式
2 Form C
Contact Material 触点材质
Ag (Au clad)
Contact Resistance 接触电阻
Max.80m Ω (initial)
Contact Rating
(at Resistive Load)
触点负载(阻性负载)Rated Load 触点容量
1A 30VDC/125VAC,2A 24VDC
Max. Switching Voltage 开关电压
220VAC,24VDC
Max. Switching Current 开关电流
2A
Max. Switching Power 开关功率
48W(DC)/60VA(AC)
Dielectrive Strength 介质耐压
Between Coil ＆ Contact 线圈与触点间
Between Contacts 触点组之间1000V(1 minute)
500V(1 minute)
Surge Strength 浪涌电压
1500V
Operate Time 动作时间
Max. 6m Sec
Release Time 释放时间
Max. 5m Sec
Ambient Temperature 环境温度
-30 ℃ ~+70 ℃
Insulation Resistance 绝缘电阻
Min.1000M Ω at 500VDC
Vibration Resistance 振动
1.5mm D.A. 10-55HZ
Mechanical Life 机械寿命
1×107 operations (at no load)
Electrical Life ( Resistive Load) 电气寿命
1×105 operations (at rated load)
Weight 重量
Approx.5g
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 陈树辉
- 电话：0755-82534577/13076512089
- 传真：0755-82534577
- 手机：13686868407
- QQ ：
供应铝壳电阻器150W60RJ
信息内容：RXLG铝壳电阻器，该电阻器广泛应用于电源、变频器、负载老化，能在恶劣的工作环境中使用易安装，附加散热装置耐震动，外形美观是电子电力理想配套产品。 一.铝壳电阻的特点：1.铝壳电阻器耐气候性、耐振动、安全性，优于传统瓷骨架电阻器。2.易紧密安装、易附加散热器。3.外型美观，是电力电子理想的配套产品。4.广泛应用于电源、变频器、伺服系统等高要求的电气回路中，并且能适用于恶劣的工控环境。 二.产品外形尺寸图以及选型表

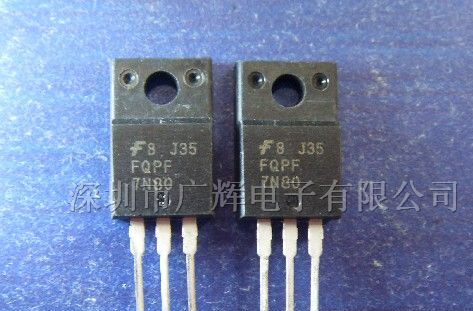

供应800V,7A N-CH MOS管FQPF7N80C
