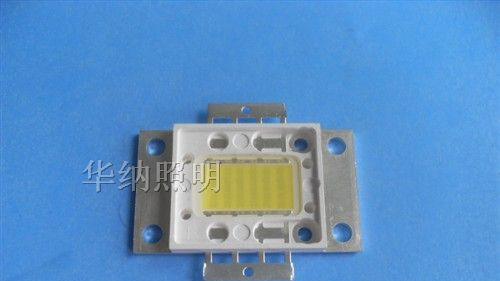

70w大功率led白光
| 价 格： | 面议 | |
| 型号/规格： | 大功率led | |
| 品牌/商标： | 华纳 | |
| 发光颜色： | |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | Φ | 6000 | 6500 | 7000 | lm | IF =2400mA |
| Viewing Angle | 2θ1/2 | 140 | deg | IF =2400mA | ||
| Domain Wavelength | Tc | 6000 | 6500 | 7000 | K | IF =2400mA |
| Spectral Line Half-Width | Δλ | nm | IF =2400mA | |||
| Forward Voltage | VF | 32.00 | 34.00 | 36.00 | V | IF =2400mA |
| Reverse Current | IR | 20 | μA | VR = 5V | ||
| Absolute Maximum Ratings at TA=25℃ | ||||||
| Parameter | Maximum Rating | |||||
| Power Dissipation | 70W | |||||
| Peak Forward Current | 5000mA | |||||
| (1/10 Duty Cycle, 0.1ms Pulse Width) | ||||||
| Continuous Forward Current | 2400mA | |||||
| Derating Linear From 30℃ | 0.8mA/℃ | |||||
| Reverse Voltage | 5V | |||||
| Operating Temperature Range | -20℃ to + 60℃ | |||||
| Storage Temperature Range | -35℃ to + 60℃ | |||||
| Lead Soldering Temperature | 300℃ for 5 Seconds | |||||
| [1.6mm(.063") From Body] | ||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 张先生
- 电话：0755-27167473
- 传真：-
- 手机：15220111752
- QQ ：
50w大功率led白光
信息内容：Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity Φ 3300 3700 4000 lm IF =2800mA Viewing Angle 2θ1/2 140 deg IF =2800mA Domain Wavelength Tc 6000 6500 7000 K IF =2800mA Spectral Line Half-Width Δλ nm IF =2800mA Forward Voltage VF 16.00 17.00 18.00 V IF =2800mA Reverse Current IR 20 μA VR = 5V Absolute Maximum Ratings at TA=25℃ Parameter Maximum Rating Power Dissipation 50W Peak Forward Current 4000mA (1/10 Duty Cycle, 0.1ms Pulse Width) Continuous Forward Current 2800mA Derating Linear From 30℃ 0.8mA/℃ Reverse Voltage 5V Operating Temperature Range -35℃ to + 60℃ Storage Temperature Range -35℃ to + 60℃ Lead Soldering Temperature 300℃ for 5 Seconds [1.6mm(.063") From Body]
30w大功率LED白光
信息内容：Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity Φ 1800 1950 2100 lm IF =1700mA Viewing Angle 2θ1/2 140 deg IF =1700mA Domain Wavelength Tc 6000 6500 7000 K IF =1700mA Spectral Line Half-Width Δλ nm IF =1700mA Forward Voltage VF 16.00 17.00 18.00 V IF =1700mA Reverse Current IR 20 μA VR = 5V Absolute Maximum Ratings at TA=25℃ Parameter Maximum Rating Power Dissipation 30W Peak Forward Current 3000mA (1/10 Duty Cycle, 0.1ms Pulse Width) Continuous Forward Current 1700mA Derating Linear From 30℃ 0.8mA/℃ Reverse Voltage 5V Operating Temperature Range -35℃ to + 60℃ Storage Temperature Range -35℃ to + 60℃ Lead Soldering Temperature 300℃ for 5 Seconds [1.6mm(.063") From Body]
