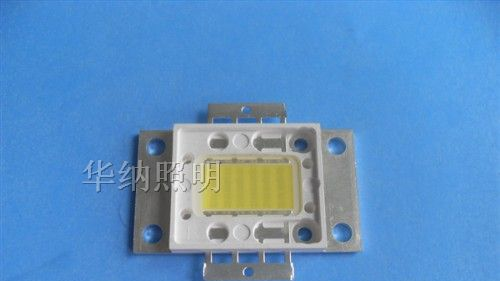

30w大功率LED白光

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Φ	1800	1950	2100	lm	IF =1700mA
Viewing Angle	2θ1/2		140		deg	IF =1700mA
Domain Wavelength	Tc	6000	6500	7000	K	IF =1700mA
Spectral Line Half-Width	Δλ				nm	IF =1700mA
Forward Voltage	VF	16.00	17.00	18.00	V	IF =1700mA
Reverse Current	IR			20	μA	VR = 5V
Absolute Maximum Ratings at TA=25℃
Parameter	Maximum Rating
Power Dissipation	30W
Peak Forward Current	3000mA
(1/10 Duty Cycle, 0.1ms Pulse Width)	3000mA
Continuous Forward Current	1700mA
Derating Linear From 30℃	0.8mA/℃
Reverse Voltage	5V
Operating Temperature Range	-35℃ to + 60℃
Storage Temperature Range	-35℃ to + 60℃
Lead Soldering Temperature	300℃ for 5 Seconds
[1.6mm(.063") From Body]	300℃ for 5 Seconds
