型号

Type

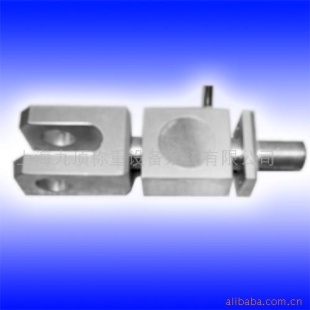

M6F

额定载荷Emax

Rated Capacity

t

3,5

灵敏度

Sensitivity

mV/V

2.0±0.002

零点平衡

Zero Balance

mV/V

±1

温度对灵敏度影响

Temperature Effect On Output

%10K

±0.02

温度对零点影响

Temperature Effect On Zero

%10K

±0.02

非线性误差

Non-Linearity

%

±0.03

滞后误差

Hysteresis Error

%

±0.03

蠕变及蠕变恢复

Creep/30 Min

%

0.02

输入电阻

Input Resistance

Ω

400±10

输出电阻

Output Resistance

Ω

352±2

参考电压

Reference Excitation Voltage

V

10-12

工作电压

Maximum Excitation Voltage

V

15

绝缘电阻

Insulation Resistance

MΩ

≥5000

额定温度范围

Nominal Temperature Range

℃

-20-+50

工作温度范围

Operating Temperature Range

℃

-30-+70

储存温度范围

Storage Temperature Range

℃

-30-+80

安全承载

Safe Load Limit

%

150

极限承载

Breaking Load

%

300

材料

Material

Alloy steel,  Stainless steel

保护等级

Protection class

IP67
