单层玻璃反应釜SF-10L
- 价 格：
- 9000.00
- 型 号：
- SF-10L
产品介绍

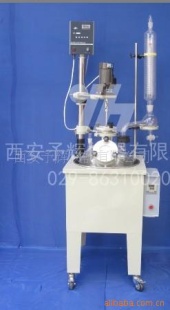

单层玻璃反应釜SF-10L
| 品牌 | 予辉 | 型号 | SF-10L |
| 种类 | 反应釜 | 紫外波长 | 11 |
| 型号 Model | F2H | F5H | F20H | F20H2 | F50H2 | |
| 基 本 参 数 | 反应瓶 Reaction flask(L) | 2 | 5 | 20 | 20 | 50 |
| 瓶口数 The mouth number of the bottle | 4 | 4 | 5 | 6 | 6 | |
| 搅拌功率 Stirring power(W) | 90 | 120 | 250 | 250 | 250 | |
| 转速 Speed(rpm) | 60-1300 | 40-1700 | 40-1700 | 40-1700 | 40-720 | |
| 搅棒轴径 The diameter of Stirring bar(mm) | φ6 | φ10 | φ10 | φ10 | φ12 | |
| 浴锅 Heating bath | 1.5kw 180℃ | 2kw 180℃ | 3kw 180℃ | 3kw 180℃ | 6kw 180℃ | |
| 电源 Power(V) | 220 | 220 | 220 | 220 | 380 | |
| 功 能 配 置 | 变频调速 Frequency-converting | / | ● | ● | ● | ● |
| 真空密封 Vacuum sealing | ● | ● | ● | ● | ● | |
| ±0.2℃温控 ±0.2℃controlling of temperature | ● | ● | ● | ● | ● | |
| 浴锅放液 Discharge of healing bath | ● | ● | ● | ● | ● | |
| PTFE搅拌 PTEE stirring bar | ● | ● | ● | ● | ● | |
| 加料活塞 Charging cork | ● | ● | ● | ● | ● | |
| 测温管 Tube for testing temperature | ● | ● | ● | ● | ● | |
| 回流冷凝器 Reflux condenser | ○ | ● | ● | ● | ● | |
| 蒸馏冷凝系统 Distillation condenser system | / | ○ | ○ | ○ | ○ | |
| 真空表 Vacuum meter | / | ○ | ● | ● | ● | |
| 倾斜式立体搅拌 Inclined stereoscopic stirring | / | / | ● | ● | ● | |
| 自动正反搅拌 Automatic stir in CW or CCW | / | / | ○ | ○ | ● | |
| 多功能口 Mouth for muti-fanctions | / | / | ● | ● | ● | |
| 下出料口 Low mouth for taking material out | / | / | / | ● | ● | |
| 放料活塞 Discharging cork | / | / | / | ● | ● | |
| 浴锅盖 Cap of heating bath | ○ | ○ | ○ | ○ | ○ | |
| 防积塞 Corke for anti-block | / | / | ||||
