OS-3040D模拟存储示波器
- 价 格：
- 10800
- 型 号：
- OS-3040D
- 品牌/商标：
- 韩国EZ
- 企业类型：
- 贸易商
- 新旧程度：
- 全新
- 原产地：
- 韩国
产品介绍

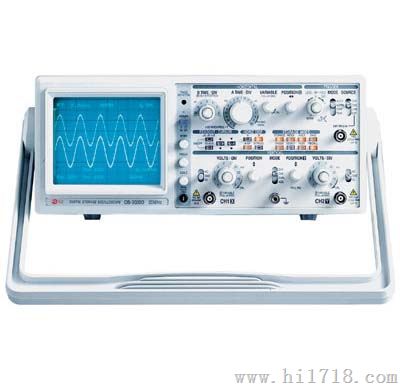

OS-3040D模拟存储示波器
特性介绍
● 数字和模拟示波器组合的性能
● 2通道同步取样的速率为20MS/s
● 信号重复等效值60MHz
● 每个通道存储量达2K字节
● 实时切换和存储模式
● 双存储记忆体模式
● 机板预先触发，使得波形线性比例观察点生效
● 卷模态提供连续观察慢性波形
● 平均功能提供总和平均达到256倍
● 线性和正弦窜改功能最适合正弦或脉膊曲线信号
● 放大功能可详细观察波型
● 读数功能可将所测量的电压时间频率显示在屏幕上
● 用HP-GL指令和RS232界面卡现存可直接拷贝现存屏幕显示
规格
| OS-3020D | OS-3040D | OS-3060D | ||
| CRT阴极管 | 配置和有效视频 | 6 inch rectangular screen with internal graticule: 8x10DIV (1div=1cm), marking for measurement of rise time. 2mm subdivisions along the central axis. | ||
| 加速电势 | +1.9kV approx | +11.5kV approx | +11.5kV approx | |
| 荧光器 | P31 (Standard) | |||
| 聚焦 | Possible (with auto - focus correction circuit) | |||
| 旋转线迹 | provided | |||
| 比例照明 | Variable | |||
| 亮度控制 | provided | |||
| 高强度Z轴输入 | 输入信号 | Positive going signal decreases intensity + 5Vp-p or more signal cases noticeable modulation at normal intensity settings | ||
| 频宽 | DC to 2MHz (-3dB) | |||
| 触发耦合 | DC | |||
| 输入阻抗 | 20kOhm - 30kOhm typical | |||
| 输入电压 | 30V (DC + peak AC) | |||
| 垂直偏转 | 频宽 | (DC Coupled) DC to 20MHz normal DC to 7MHz magnified |
DC to 40MHz normal DC to 7MHz magnified |
DC to 60MHz normal DC to 10MHz magnified |
| 模式 | CH1,CH2,DUAL,ADD (CHOP: Time/div switch -0.2s to 5ms, ALT: time/div. switch -2ms to 0.2us) | CH1,CH2,DUAL,ADD (CHOP: Time/div switch -0.2s to 5ms, ALT: time/div. switch 2ms to 0.1us) | ||
| 偏转系数 | 5mV/div to 5V/div in 10 calibrated steps of a 1-2-5 sequence. Continuously variable between steps at least 1:2:5 (x5 MAG : 1mV/div to 1V/div 10 calibrated steps) | |||
| 准确度 | Normal: +/-3%, magnified: +/-5% | |||
| 输入阻抗 | Approx, 1Mohm in parelle1 with 25pF+/-3pF | |||
| 输入电压 | Direct 250V (DC + AC Peak) (with probe: refer to probe specification) | |||
| 输入耦合 | DC- GND - AC | |||
| 延升时间 | 17.5ns or less (50ns or less: x5) | 8.8ns or less (50ns or less: x5) | 5.8ns or less (35ns or less: x5) | |
| 通道1 输出 | 20mV/div into 50ohm : DC to 10MHz (-3dB) | |||
| 极性逆向 | CH2 only | |||
| 信号延时 | Delay cable supplied for OS-3040D / OS-3060D | |||
| 水平偏转 | 显示方式 | A, A int B, B, TRIGD, X-Y | ||
| A 时基 | 0.2us/div to 0.2s/div in 19 calibrated steps 1-2-5 sequence, uncalibrated continuous control between steps at least 1:2:5 | 0.1us/div to 0.2s/div in 20 calibrated steps 1-2-5 sequence, uncalibrated continuous control between steps at least 1:2:5 | ||
| 锁定时间 | Variable with the holdoff control | |||
| B 时基 | 0.2us/div to 20us/div in 7 calibrated steps 1-2-5 sequence | 0.1us/div to 0.2us/div in 20 calibrated steps 1-2-5 sequence | ||
| 延时扫描 | 1 div or less to 10 div or more | |||
| 延迟抖动 | better than 1:20000 | |||
