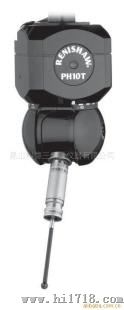

PH10T测头,三次元测头

品牌	英国Renishaw	型号	PH10T
类型	全自动侧头

Specifi cation summary PH10T
REPEATABILITY OF POSITION* (2σ)
* At constant temperature
<0.5 μm (<0.00002 in) specifi ed at a distance of 48 mm (1.89 in)
- equivalent to a TP2 and PS1R stylus
ACCURACY OF STEP SPACING FROM
THEORETICAL POSITION
±0.24 mm (±0.012 in) (using TP6 probe and stylus part number
A-5000-3553)
CYCLE TIME 7.5° step
Maximum 90° move
2.5 seconds
3.5 seconds
TOTAL ANGULAR
MOVEMENT
A axis
B axis
0° to 105° in 7.5° steps
±180° in 7.5° steps
TOTAL NUMBER OF POSITIONS 720
MAXIMUM OUTPUT TORQUE 0.45 Nm
MAXIMUM EXTENSION BAR LENGTH
(WITH TP2/TP200)
300 mm (11.81 in)
HEAD MOUNTING Shank to suit CMM (MS range)
WEIGHT (excluding shank) 645 g (22.75 oz)
WORKING TEMPERATURE RANGE 10 °C to 40 °C (50 °F to 104 °F)
PROBE MOUNTING FACILITY M8 thread
PROBE HEAD CONTROLLER PHC10-2
HAND HELD CONTROL UNIT HCU1
