Features (Benefits) :-

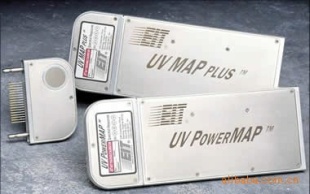

• UV PowerMAPmeasures peak irradiance and total energy density in four spectral regions: UVA, UVB, UVC, and UVV


• UV MAP Plusmeasures the peak irradiance and total energy density for any one channel


• Collection and storage of up to I million data points for accurate UV and temperature mapping in your system


• Collected data displayed in graphical and tabular forms in the PowerView software package


• Ultra-fast, user-adjustable sampling rate - up to 2048 samples/second - ensures high resolution even at high speeds


• Detachable Optics Head - allows the use of different optics heads with the Data Collection Unit to minimize downtime during recalibration


• Offset optics for easy measurement at conveyor edge

•
  Type J thermocouple records temperatures from 0-500°C


• Low, narrow profile to allow access to most curing applications

• Rugged aluminum chassis and stainless steel case

• Measure the performance of the entire UV process from the beginning of the system to the end


• Evaluate lamp focus, reflector focus, and reflector efficiency in one spectral region with the UV MAP Plus and all four regions with the UV PowerMAP


• Compare reflector materials and shapes, wavelength-specific degradation, and uniformity over time or to other systems


• Compare spectral output, degradation, and uniformity of one or more UV lamps


• Measure and document substrate temperatures during the cure process to prevent damage to temperature-sensitive materials


• Track and store data for statistical quality control, regulation compliance, or historical comparisons


• Print run data to attach to work orders, reports, or ISO and FDA audits


• Archive measurement data to track system performance over time
