英国RENISHAW测头

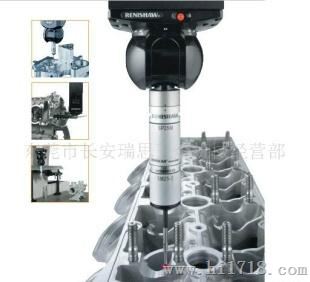

Renishaw PH10T机械分度测座

PH10T是由英国Renishaw公司设计生产的分度旋转关节，可实现720个可重复定位，从而可完成对工件的全方位检测。

PH10T is an indexable head from Renishaw that connects the probe sensors to the CMM quill.  The PH10T can be repeatable oriented to any feature of a part.

技术参数(Characteristics):

•分度轴A Indexable axis A (俯仰Roll) : from 0° to105°, step of 7.5°

•分度轴B Indexable axis B (旋转Pitch)      :±180°, step of 7.5°

•重量(Weight)                            : 645 g

•定位重复性(Positioning repeatability) : 0.5 µm

•加长杆长度(Max. Extension bar) : 300 mm

Renishaw TP20触发式测头TP 20 electronic probe

Renishaw TP20型测头含标准测力吸盘和中等测力吸盘

Renishaw Touch Trigger Probe (TP20) withonestandard force stylus modules, One Medium Force Module

 TP20技术参数(TP20 Characteristics):

•感应方向(Sense directions)        : 5 ways,±X,±Y, +Z

•重复性(Repeatability)                : 0.35 µm with 10mm tip

•重量(Weight)                                   : 22 g
