数字示波器TDS784D

出售二手示波器，汉润仪器二手数字示波器市场，现有带宽1GHZ数字示波器TDS784D现货两台，带宽1GHZ数字示波器，采样率4GS/s，价格超低，欲购从速。选择汉润仪器二手频道，我公司仪器成色新、价格优惠，提供二手仪器的技术支持终身和保修服务半年以上，售后服务稳定快捷，让您能放心购买二手仪器。

以下均为实物拍摄-

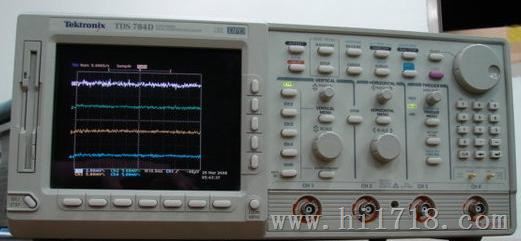

1、TDS784整图

Tektronix TDS784D 1GHZ 数字示波器|4通道|采样率4GS/s|二手仪器
TDS784D技术参数：
带宽：1GHz      采样速率：4GS/s  通道数：四通道
Tektronix TDS784D Oscilloscope, Digital: 1GHz, 4GSa/s, 4 Channel (StAlone)

2、TDS784D正面

The Tektronix TDS784D oscilloscope is a graph-displaying device – it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage the horizontal (X) axis represents time. The intensity brightness of the display is sometimes called the Z axis.

The Tektronix TDS784D oscilloscope's simple graph can tell you many things about a signal, such as: the time voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) alternating current (AC) how much of the signal is noise whether the noise is changing with time.

TDS784DPerformanceacteristics of the TDS784D
Form FactBenchtop
Bandwidth 1 GHz
Number of Channels 4 ch
Simultaneous Channels 4 ch
Simultaneous Maximum Sampling Rate/ch 2 GSa/s
One ch. only max. sampling rate 4 GSa/s
Max. Single Shot bandwidth 1 GHz
Max. Record Length 50000 pt/sec
Min. Vertical Sensitivity 1 mV/div
Maximum Vertical Sensitivity 10 V/div
Rise time 350 ps
Number of Bits 8 bits
Input Impedance 1 MOhm
Input Impedance (alternate) 50 Ohm
Input Coupling AD,DC,GND
Maximum Input Voltage 400 Vrms
Main time base - lowest 200 ps/div
Main time base - highest 10 s/div
Timebase accuracy 0.0025 %
Trigger Source External,Internal
Trigger Modes Auto,Edge,Logic,Normal,Pulse,Single
Minimum Trigger Holdoff 16 ns
Minimum Glitch Trigger 1 ns
Display Type ColLCD
Display Size 17.78 cm
Display modes Dot,Persistence,Vect

3、TDS784D后面

Programmability/Connectivity of the TDS784D
User Interface Proprietary
Ports to Peripheral Devices Centronics,GPIB,RS232
Test Pattern Storage 10 Patterns
Novram data storage Yes
Data Storage Type FDD
Programming Language Windows
TDS784D 1GHZ 数字示波器|4通道|采样率4GS/s

深圳市汉润电子有限公司业务范围：频谱分析仪，网络分析仪，信号发生器，示波器，

音频分析仪等测试测量仪器，定制网房，迈克尼斯（MSA338）总代理。

仪器代理|仪器销售|仪器维修|二手仪器租赁|二手仪器回收|深圳二手仪器销售···

服务宗旨：以客户为中心、以技术为基础、以服务为纽带

公司地址：深圳市福田区华发北路30号电子设计院4号楼601

以上是我公司二手1G数字示波器TDS784D的详细参数，欲知更多信息和服务，欢迎24小时来电咨询。
