轮辐式称重传感器
供应轮辐式称重传感器/轮辐式称重传感器价格
一、轮辐式称重传感器主要特点:
轮辐式传感器 拉压力结构
优质合金钢材质
安装简便、快捷,稳定可靠
适用于试验机、汽车衡和大型料斗秤等
二、轮辐式称重传感器测量力值范围
100kg 200kg 500kg 1t、2t、3t、5t、10t、20t、30t、50t、70t、100t(可定制)
三、轮辐式称重传感器技术参数
Rated Output | 额定输出 | 2.0mV/V ±0.1% |
Zero Balance | 零点平衡 | ±1% of rated output |
Creep after 30 minutes | 蠕变 | ±0.03% of rated output |
Nonlinearity | 非线性 | ±0.03% of rated output |
Hysteresis | 滞后 | ±0.03% of rated output |
Repeatability | 重复性 | ±0.03% of rated output |
Temp. effect on output | 灵敏度温漂 | ≤0.002% of applied output/oC |
Temp. effect on zero | 零点温漂 | ≤0.002% of applied output/oC |
Safe Temp. Range | 可用温度范围 | -10oC to + 70oC |
Temp. Compensated | 温度补偿范围 | -10oC to + 40oC |
Safe Overload | 安全载荷 | 150% |
Input Impedance | 输入阻抗 | 387 ohm ± 20 ohm |
Output Impedance | 输出阻抗 | 350 ohm ± 5 ohm |
Rated Excitation | 推荐激励电压 | 10V DC/AC |
Maximum Excitation | 激励电压 | 15V DC/AC |
四、实物展示

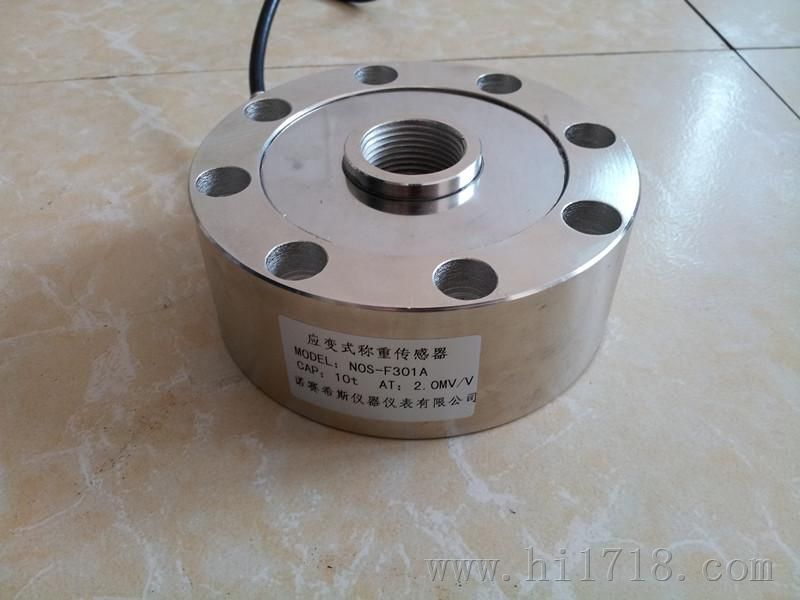

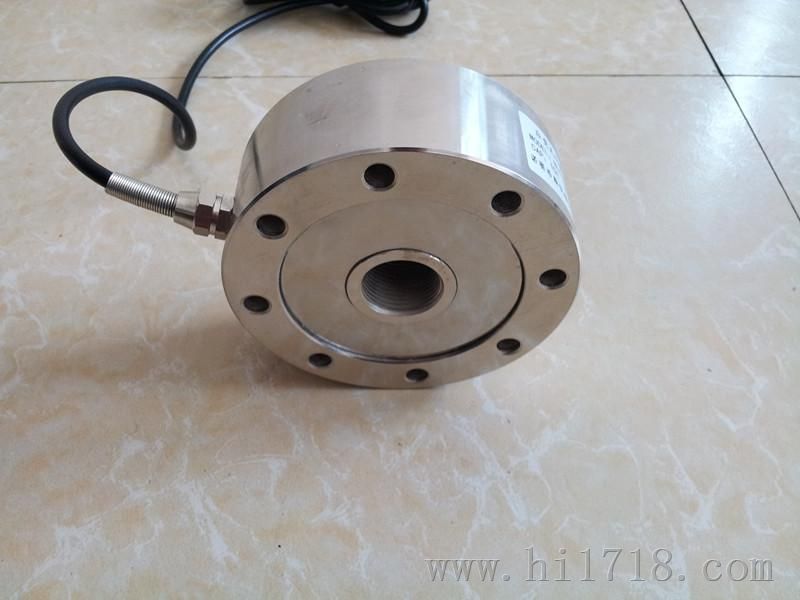

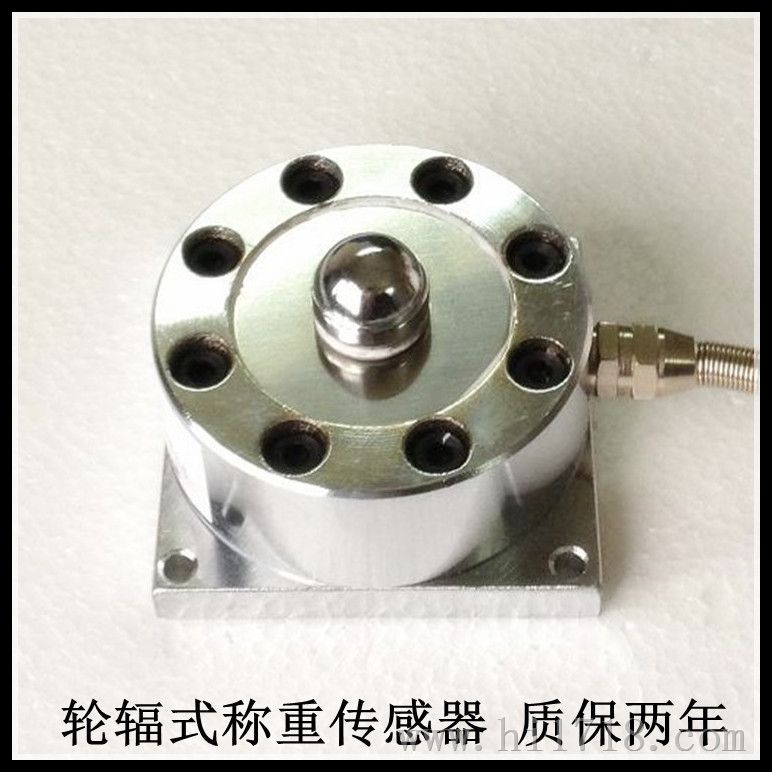

轮辐式称重传感器
轮辐式称重传感原理
