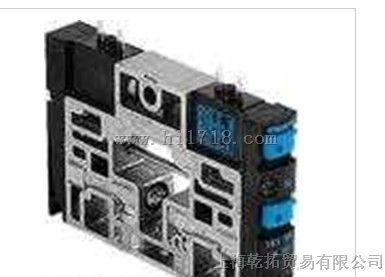

费斯托FESTO紧凑型电磁阀VUVG-L14-P53E-T-G18-1L1L

费斯托FESTO紧凑型电磁阀,VUVG-L14-P53E-T-G18-1L1L
Y, U, Z, W At least one left-hand supply plate (9) X or one compressed air supply/duct
separation (12) U, SU, TU, RU, USU, UTU or URU must be selected
K, L Must be selected if left-hand supply plate (9) X or one compressed air supply/duct
separation (12) (S, T, R, U, SU, US, TU, UT, RU, UR, USU, UTU, URU) was selected
3 M, N, G Must be selected if pneumatic valve terminal supply (6) S or V was selected
Sizes of pneumatic connectionsTable on page 4 / 1.3-76
4 Z A reversible pressure zone cannot be terminated with a right-hand end plate (4) V, Y, U
(internal pilot air supply)
Pushing/detenting -R
Reverse operation: Exhaust port 1, supply port 3/5 common
Pneumatic valve terminal supply Silencer and QS push-in fittings S
standard: threaded connection) QS push-in fittings V
Configuration of all pneumatic QS push-in fittings, large 3 M
connections QS push-in fittings, small 3 N
QS push-in fittings, large and small mixed 3 G
Outgoing direction of all working lines
standard outlet at front)
90° connection plate, outlet at bottom P
Left-hand supply plate Left-hand supply plate in front of manifold sub-base 00 X
Reverse operation Reverse operation as of valve position 00 4 Z
Z, W At least one left-hand supply plate (9) X or one compressed air supply/duct
separation (12) U, SU, TU, RU, USU, UTU or URU must be selected
Must be selected if left-hand supply plate (9) X or one compressed air supply/duct
separation (12) (S, T, R, U, SU, US, TU, UT, RU, UR, USU, UTU, URU) was selected
3 M, N, G Must be selected if pneumatic valve terminal supply (6) S or V was selected
Sizes of pneumatic connectionsTable on page 4 / 1.3-86
4 Z A reversible pressure zone cannot be terminated with a right-hand end plate (4)
(internal pilot air supply)
