TGR6000高频信号发生器

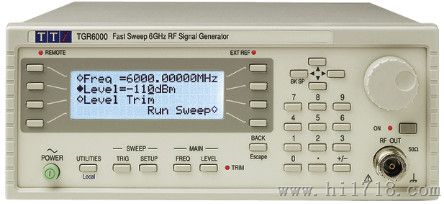

Aim-TTi TGR6000 6GHz RF Signal Generator
The TGR6000 is a low-cost 6GHz signal generator intended for CW (carrier wave) applications where modulation is not required. Low phase noise is matched by low leakage, low residual FM and spurii. The internal timebase has a 1ppm stability, and an external frequency reference can be used. Sophisticated sweep functions enable the frequency and/or amplitude to be swept over the full range of each in a single sweep.
0MHz to 6000MHz frequency range
10Hz setability, +/-1ppm frequency stability
Locking to external frequency standard
-110dBm to +7dBm amplitude, 0.1dB steps
Fast stepping sweep with dwell times down to 10ms
List sweep of up to 1000 points of amplitude vs frequency
User compensation tables for specific test set-ups
Storage for 12 generator set-ups and 16 sweep lists
Compact half-rack 2U casing uses minimum bench space
Full remote control through RS232, USB, LAN and GPIB
Significantly lower cost than other 6GHz generators
| Technical specification | |
| Frequency | |
| Frequency Range | 10MHz to 6000MHz |
| Setting Resolution | 10Hz by direct keyboard entry, or in user-set increments of 10Hz to 999?999MHz by rotary control or increment–decrement keys |
| Phase Noise | 500MHz Carrier: <-110dBc/Hz @ 20kHz offset; <-120dBc/Hz @ 100kHz |
| 3GHz Carrier: <-95dBc/Hz @ 20kHz offset; <-110dBc/Hz @ 100kHz offset | |
| 6GHz Carrier: <-89dBc/Hz @ 20kHz offset; <-104dBc/Hz @ 100kHz offset | |
| Residual FM | Equivalent peak deviation for 300Hz to 3.4kHz B/W: 12Hz at 500MHz carrier |
| Settling Time | <8ms to settle within 100Hz or 0.1ppm of final frequency, if greater |
| Reference Frequency | Internal or External (via rear panel BNC) |
| Internal Accuracy | +/- 1 ppm over 15°C to 30°C; +/- 2 ppm over 5°C to 40°C |
| Internal Stability | < +/-1ppm/year ageing |
| Internal Ref. Out | 10MHz from 50 Ohms, amplitude 2V pk-pk into 50 Ohms |
| External Ref In | 10MHz into 50 Ohms, amplitude 2V pk-pk to 5V pk-pk |
| Output Level | |
| Level Range | –110dBm to +7dBm (0.1μV to 500mV into 50 Ohms) |
| Setting Resolution | 0.1dB (or 0.01μV to 1mV) by direct keyboard entry, or in user-set increments of 0.1dB to 100dB (or 0.01μV to 100mV) |
| Accuracy | Better than ± 2dBm |
| Harmonics | <-25dBc at +7dBm. <-30dBc@levels <=0dBm 30 to 6000MHz, <-25dBc@levels <=0dBm 10 to 30MHz |
| Sub-Harmonics | <3000MHz : None. >3000MHz :<–40dBc (typ) @ +7dBm |
| Non-Harmonic Spurii | <–50dBc >10kHz offset 10 to 3000MHz, <-44dBc >10kHz offset 3000MHz to 6000MHz |
| Output Connector | Type N |
| Sweep | Frequency and amplitude sweep |
| Step Sweep | Step frequency and/or amplitude according to a formula over a specified number of points |
| Dwell Time | Individually programmable 0.01 to 10.000sec per step |
| Max Points | 1000 |
| Sweep Run | Continuous or single. Sweep up or down |
| Step Spacing | Linear or logarithmic |
| Sweep Triggering | Manual, Ext. signal, timed (0.1 – 999.9sec) or via remote interface |
| Sync Signal | Output Stable) available during dwell time. Programmable as high or low |
| List Sweep | As for Step Sweep except that a user defined table of frequency, amplitude and dwell time values defines the steps. The table can be created within the instrument or downloaded via the remote interfaces |
| Max Points | 1000 |
| List Storage | Up to 16 Sweep Lists can be stored permanently within the instrument |
| Point Trigger | Each point in a sweep (step or list) can be subject to a trigger event rather than a dwell time. Trigger by Manual, Ext. signal or via remote interface |
| Trim | (User Level Compensation Tables) |
| Function | A table of frequency/gain pairs allows the user to modify the generator output level with respect to frequency to calibrate an entire test set up or improve the calibration of the generator alone |
| Max Points | 100 |
| Interfaces | Full digital remote control through the RS232, USB, LAN and GPIB interfaces |
| RS-232 | 9-pin D connector. Variable Baud rate 1200 and 115200 Baud |
| USB | USB 2.0 connection. Operates as a virtual COM port |
| GPIB (IEEE-488) | Conforming with IEEE488.1 and IEEE488.2 |
| LAN (Ethernet) | Standard 10/100 base-T hardware connection. ICMP and TCP/IP Protocol |
| General | |
| Size and Weight | 2U (86.5mm) height; half-rack (213mm) width; 350mm long. 3.65 kg. (8 lb) |
| Power | 110-240VAC ±10% 50/60Hz; 100-120VAC ±10% 400Hz; 60VA max |
| Approvals | Complies with EN 61010-1 (Safety) and EN61326 (EMC) |
随附
Operating manual, driver software, power lead
