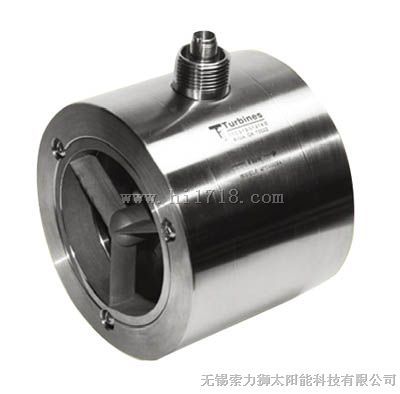

对夹式涡轮流量计

对夹式液体涡轮流量计采购耐用不锈钢设计，经过精密加工。标准配置为：转子采用铸造双相不锈钢CD4MCu(0Cr26Ni5Mo2Cu3) 或416不锈钢；口径从3/8寸到10寸不等。也可根据客户需要定制高压工况（1500psig)下使用的尺寸及材质。Turbines公司的液体流量计精度高，适合测试多种液体。

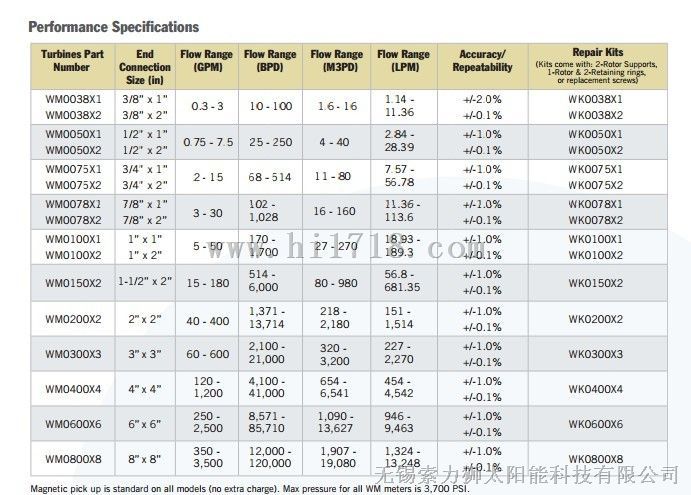

技术参数：

Performance

Accuracy: +/- 1.0% over flow range(except WM0038 which is +/-2.0%)

Repeatability: +/- 0.1% over flow range

Operating Temperature: -100℉ to +300℉

Connection: Water style

Maximum Pressure: 3,700 PSI

Materials

Meter Body: 316 stainless steel

Rotor Supports: 316 stainless steel

Meter Rotor :CD4MCu/ 416 stainless steel

Rotor Shaft :Tungsten carbide

Sleeve Bearings : Tungsten carbide

Certifications:   ISO 9001

Additional Information:    Full line of economical Retrofit Kits are available

                                             Factory refurbishment woith one day turnaround is available
