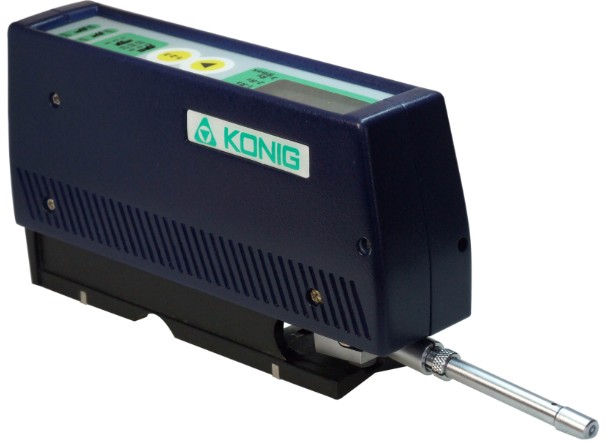

KT600便携式表面粗糙度仪

一、仪器特点 Characters

1、可用于检测不同形状表面的粗糙度，包括：

    The product can be widely used in measuring different work piece surface roughness, including:

2、平面、外圆、内孔、凹槽及其他较难测量的表面。

    Plane, outer circle, inner hole, groove and other surfaces that are difficult to measure.

3、既可在车间现场使用，也适用于计量室和实验室。

    Can be used in workshops, as well as measuring rooms and laboratories.

4、传感器可在内置或转出至90 °,180 ° 及270 °进行测量，可轻松满足不同状况下的检测要求。

    It can measure surface roughness when the sensor is being built-in or rotate up to 90°, 180°, 270°, this is easy for measuring requirements of different conditions.

5、仪器可在垂直甚至倒置的状态下进行操作。

    Operation could be made in vertical and inversion conditions.

6、符合ISO, DIN, ANSI, JIS 标准。

    Meet various standards such as ISO, DIN, ANSI, JIS.

7、顶置液晶数字显示，读数方便。

    It is convenient to read the overhead LCD digital display.

8、测量结果公/英制可选择。

    Measurement results could be optional in metric/inch.

9、可配置标准RS-232输出端口，将测量结果输出至微型打印机或电脑。

    Configurable for standard RS-232 output port, and then send measuring results to micro printers and computers.

二、技术指标 Specification

1、测量范围:

    Measuring range：

    Ra：0.05μm ~ 9.99μm /2μ" ~ 400μ";Rz，Ry/Rmax：0.2μm ~99.0μm/8μ" ~999μ"

2、显示分辨率:

    Resolution：0.01μm /1μ"

3、取样长度 (λC)：0.25 mm ,0.8mm,2.5 mm可选
