ABB分析仪器电导率探头TB25

品牌	ABB	型号	TB25,TB254
测量范围	见技术要点	测量精度	见技术要点
分辨率	见技术要点	电源	见技术要点
尺寸	见技术要点（mm）	用途	见技术要点

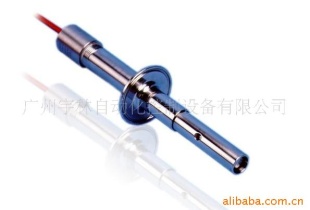

Conductivity Cell TB25

The Conductivity Cell TB25 sensors have an integral Tri-Clamp fitting for use in sanitary services. A Food and Drug Administration (FDA) approved silicone potting material around the body of the sensor seals the measurement electrode tip. The first style available has an extended face that places the measurement electrodes into the process past the fitting. The extended face style is narrow enough to allow cleaning chemicals or steam to surround the body of the measurement electrodes. This assures crevice free cleaning. The sec-ond style has a Tri-Clamp fitting that is flush with the sensor body.

• Integral Tri-Clamp flange
• All FDA approved materials
• Measurement ranges from 0 to 1.999 µS/cm to 0 to 19.99 mS/cm
• Corrosion resistant 316 stainless steel measurement electrodes
• Pt100 or Pt1000 integral temperature compensation elements
• Maximum temperature 175 °C (347 °F)
• Maximum pressure 862 kPa (8.62 bar / 125 psi)

Conductivity Cell TB254

The Conductivity Cell TB254 can be installed either inline or used for submersible applications. Inline applications consist of 1 in. NPT receptacles where the sensor is either inserted and twisted 90 degrees or inserted and held in place by a cap nut. Easy yet flexible installation makes this sensor ideal for general use conductivity measurements.

• Twist-lock and Ryton threaded receptacle make sensor access quick and easy
• Measurement ranges from 0 to 1.999 µS/cm to 0 to 19.99 mS/cm
• Corrosion resistant 316 stainless steel measurement electrodes
• Pt100 or Pt1000 integral temperature compensation elements
• Maximum temperature 100 °C (212 °F)
• Maximum pressure 690 kPa (6.9 bar / 100 psi)
