ABB分析仪器pH值7600

品牌	ABB	型号	2867,7600
测量范围	见技术参数表	测量精度	见技术参数表
分辨率	见技术参数表	电源	见技术参数表
尺寸	见技术参数表（mm）	用途	见技术参数表

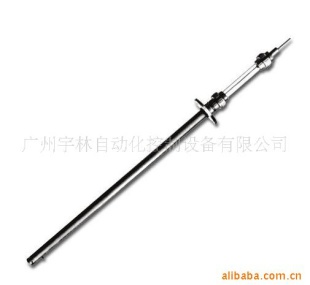

pH / Redox Electrode System 2867

The pH / Redox Electrode System 2867 with industrial dip electrode is designed for pH and Redox measurement in channels and open tanks. It is particularly suitable for use in effluent treatment applications where automatic temperature compensation is not required. The 2867 utilizes a specially designed combination electrode, providing reliable measurement in a wide variety of samples.

• Simple, robust design in three dip lengths
• Positive salt bridge flow from integral reservoir
• Easily replaced reliable combination electrode
• Built-in sight glass for salt bridge reservoir
• Simple installation on wall or tank

pH / Redox (ORP) Sensing System 7600

The pH / Redox (ORP) Sensing System 7600 is the result of over fifty years experience of continuous on-line pH measurement. Flow-through and immersion versions are available. Both types can be supplied in glass-coupled polypropylene. A stainless steel version is available as a flow system that caters predominantly for low-conductivity and high-temperature applications.

• Rugged polypropylene body
• Detachable cable electrodes
• Replaceable liquid junction and high capacity electrolyte reservoir
• Flow-through and immersion systems
• Stainless steel flow system with reservoir-fed reference electrode for high-purity waters
