ABB分析仪器电导率探头2278

品牌	ABB	型号	2278，2085
测量范围	见技术要点	测量精度	见技术要点
分辨率	见技术要点	电源	见技术要点
尺寸	见技术要点（mm）	用途	见技术要点

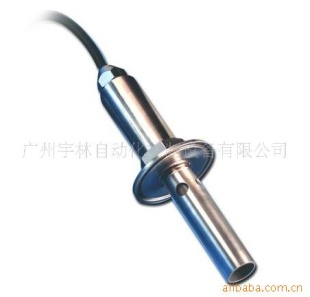

Conductivity Cell 2278

The Conductivity Cell 2278 is a Tri-Clamp cell designed for insertion in pipelines, vessels and process sample lines in Pharmaceutical and Food & Beverage applications. The cells are constructed with stainless steel electrodes and are resistant to polarization, requiring virtually no maintenance. The design and method of construction has resulted in a world-class product with an enviable reputation for long life, quality and reliability.

• Stainless steel electrodes enabling measurements down to 0.055 µS/cm ultra-pure water
• 2 in. Tri-Clamp process connection
• Guaranteed 0.05 cell constants with certificated accuracy according to USP<645>
• Integral Pt100 temperature sensor
• Maximum temperature 110 °C (230 °F)
  short periods to 130 °C (266 °F)
• Maximum pressure 10.5 bar (150 psi)

Conductivity Cell 2085

The Conductivity Cell 2085 is a retractable (withdrawable) cell designed for insertion in pipelines and vessels in most industrial applications. The retraction method enables installation without the need for costly bypasses and allows maintenance without process shutdown. The cells are constructed with stainless steel electrodes and are resistant to polarization, requiring virtually no maintenance. The design and method of construction has resulted in a world-class product with an enviable reputation for long life, quality and reliability.

• Stainless steel electrodes enabling measurements down to 0.055 µS/cm ultra-pure water
• Enables installation without the need for costly bypasses
• Allows maintenance without process shutdown
• 1 in. BSP or NPT threaded process connection
• Guaranteed 0.05 and 0.10 cell constants
• Integral Pt100 temperature sensor
• Maximum temperature 110 °C (230 °F)
• Maximum pressure 10.5 bar (150 psi)
• Integral 0.9 m (3 ft) cable
