ABB分析仪电导率探头AC221

品牌	ABB	型号	AC221
测量范围	见技术要点	测量精度	见技术要点
分辨率	见技术要点	电源	见技术要点
尺寸	见技术要点（mm）	用途	见技术要点

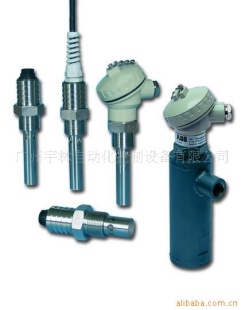

Conductivity Cell AC221

The Conductivity Cell AC221 is designed for insertion in pipelines, vessels and process sample lines in power plants, ion-exchangers, reverse osmosis and chip cleaning applications. The cells are constructed with stainless steel electrodes and are resistant to polarization, requiring virtually no maintenance. A choice of cable connection methods is available, including a detachable connector that eliminates incorrect connections. Critical temperature measurement is included with a world-beating response of less than 30 seconds, enabling rapid compensation and remote output.

• Stainless steel electrodes enabling measurements down to 0.055 µS/cm ultra-pure water
• 3/4 in. BSP or NPT process connection
• Choice of 0.01 or 0.10 cell constants
• Integral Pt100 temperature sensor
• Maximum temperature 200 °C (392 °F)*
• Maximum pressure 20 bar (290 psi)
• Rapid temperature measurement T90 < 30 s
• Problem-free, integral, terminal-head or detachable cable connection
• Ingress Protection IP 68

  * When used with ABB high temperature cable
