ABB分析电导率探头TB4042
品牌 | ABB | 型号 | TB4042,TB4043 |
测量范围 | 见技术要点 | 测量精度 | 见技术要点 |
分辨率 | 见技术要点 | 电源 | 见技术要点 |
尺寸 | 见技术要点(mm) | 用途 | 见技术要点 |

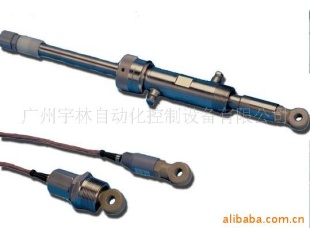

Conductivity Cell TB4042
The Conductivity Cell TB4042 expands the advancements in process conductivity measurement initiated by ABB with four-electrode conductivity measurement. Unlike four-electrode sensors, toroidal sensors have no electrodes.The TB4042 Toroidal Conductivity Sensor provides a means for measuring solution conductivity in chemically aggressive solutions that corrode, foul, or otherwise destroy electrode type sensors. The sensor itself is comprised of two wound toroids encapsulated in a chemically resistant nonconductor made of polyetherether ketone (PEEK). Measurement is made inductively via magnetic coupling between the solution and the toroids. Because measurement is made inductively, without electrodes that can be affected by erroneous resistances from foulants or coatings, these sensors are virtually impervious to all but thick layers of foulants.
- Electrodeless conductivity measurement
- Perfect for use in highly corrosive solutions
- Greatly reduces coating and other fouling problems
- Multi-range capability
- Versatile mounting: Insertion, submersible, retractable
- PEEK encapsulation and Kevlar® reinforcement
- High pressure and temperature ratings
- 316 stainless steel, Kynar®, titanium, and CPVC hardware
Conductivity Cell TB4043
The Conductivity Cell TB4043 expand the advancements in process conductivity measurement initiated by ABB with four-electrode conductivity measurement. Unlike four-electrode sensors, toroidal sensors have no electrodes.Sanitary toroidal conductivity measurements is applicable to a wide variety of process needs including: dairy, food and beverage, pharmaceutical, clean-in-place, brine, cheese souring, lye peeling and countless other applications.
- Electrodeless conductivity measurement
- Meets 3-A sanitary standards
- 100 % Virgin PEEK (polyetheretherketone)
- Integral 2 in. Tri-Clamp sanitary flange
- Inductive measurement technique
- Multi-range capability
