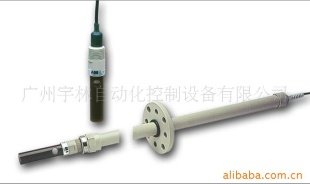

ABB分析仪器电导率探头AC211

品牌	ABB	型号	AC213，AC212，AC211
测量范围	见技术要点	测量精度	见技术要点
分辨率	见技术要点	电源	见技术要点
尺寸	见技术要点（mm）	用途	见技术要点

Conductivity Cell AC213

The Conductivity Cell AC213/0 is designed for complete submersion in open channels and waterways. AC213/1 & AC213/2 are dip-type cells for immersion in open channels and tanks in most industrial applications. The cells are constructed with annular carbon electrodes and are resistant to polarization, requiring virtually no maintenance. The design and method of construction has resulted in a world-class product with an enviable reputation for long life, quality and reliability.

• Annular carbon electrodes enabling measurements up to 10,000 µS/cm
• Fixed, ingress-protected cable
• 0.10 and 1.0 cell constants
• Integral Pt100 temperature sensor
• Submersible sensor with IP 68 ingress protection
• 1 in. NPT front and rear thread
• Robust polypropylene dip holder with integral mounting flange
• On-site adjustable dip lengths up to 1 or 2 m
• Maximum temperature 90 °C (194 °F) - dip systems

Conductivity Cell AC212

The Conductivity Cell AC212 is a flow-through cell designed for installation in sample lines in most industrial applications. The cells are constructed with annular carbon electrodes and are resistant to polarization, requiring virtually no maintenance. The design and method of construction has resulted in a world-class product with an enviable reputation for long life, quality and reliability.

• Annular carbon electrodes enabling measurements up to 10,000 µS/cm
• Integral design reducing outlay and easing installation
• Flow-through sensor with 1/2 in. BSP or NPT threads
• 0.10 and 1.0 cell constants
• Integral Pt100 temperature sensor
• Maximum temperature 100 °C (212 °F)
• Maximum pressure 7 bar (100 psi)

Conductivity Cell AC211

The Conductivity Cell AC211 is a screw-in cell designed for insertion in pipelines and vessels in most industrial applications. The cells are constructed with annular carbon electrodes and are resistant to polarization, requiring virtually no maintenance. The design and method of construction has resulted in a world-class product with an enviable reputation for long life, quality and reliability.

• Annular carbon electrodes enabling measurements up to 10,000 µS/cm
• Screw-in insertion sensor with 1 in. BSP or NPT threads
• 0.10 and 1.0 cell constants
• Integral Pt100 temperature sensor
• Maximum temperature 100 °C (212 °F)
• Maximum pressure 7 bar (100 psi)
• Ingress Protection IP 68
• Fixed cable, terminal head or detachable cable versions
