ABB分析仪电导率探头2221

品牌	ABB	型号	2221,2241,2271
测量范围	见技术要点	测量精度	见技术要点
分辨率	见技术要点	电源	见技术要点
尺寸	见技术要点（mm）	用途	见技术要点

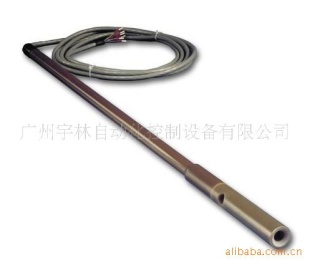

Conductivity Cell 2221

The Conductivity Cell 2221 is a dip-type cell designed for immersion in open channels and tanks in paper & pulp manufacture, industrial effluent, water quality monitoring in tidal rivers, river & canal waters, brewing & dairy CIP plants and desalination plants.The associated conductivity instrument utilizes a 2221 multi-electrode measuring cell whereby the current and voltage characteristics of the electrolyte are measured separately. This enables the electrode surfaces to become coated without impairing operation of the measuring system. With its ability to provide consistently accurate monitoring and control, under conditions which would adversely affect a standard two-electrode conductivity system, the multi-electrode system can be used in areas that would be otherwise maintenance-intensive.

• Annular carbon for widest application coverage from process waters to caustic and acidic detergents
• Enables measurements up to 400 mS/cm
• Guaranteed 1.0 cell constants - no need to calibrate
• Direct contact temperature sensor provides essential rapid response in CIP processes
• Dip-type immersion sensor with integral mounting bracket
• Maximum temperature 100 °C (212 °F)
• Integral 4.6 m (15 ft) cable

Conductivity Cell 2241

The Conductivity Cell 2241 is a flow-through cell designed for installation in sample lines in paper & pulp manufacture, industrial effluent, water quality monitoring in tidal rivers, river & canal waters, brewing & dairy CIP plants and desalination plants.The associated conductivity instrument utilizes a 2241 multi-electrode measuring cell whereby the current and voltage characteristics of the electrolyte are measured separately. This enables the electrode surfaces to become coated without impairing operation of the measuring system. With its ability to provide consistently accurate monitoring and control, under conditions which would adversely affect a standard two-electrode conductivity system, the multi-electrode system can be used in areas which would be otherwise maintenance-intensive.

• Annular carbon for widest application coverage from process waters to caustic and acidic detergents
• Enables measurements up to 400 mS/cm
• Guaranteed 1.0 cell constants - no need to calibrate
• Direct contact temperature sensor provides essential rapid response in CIP processes
• Flow-through sensor with 1/2 in. BSP or NPT threads
• Maximum temperature 100 °C (212 °F)
• Maximum pressure 6.6 bar (100 psi)
• Integral 4.6 m (15 ft) cable

Conductivity Cell 2271

The Conductivity Cell 2271 is designed to be clamped or screwed into pipelines and vessels and is ideal for use in a wide range of applications including brewing & dairy CIP plants, pulp & paper manufacture, industrial effluent and water quality monitoring in tidal rivers, river and canal waters & desalination plants. The associated conductivity analyzer, when connected to the 2271, measures the current and voltage characteristics of the electrolyte separately. This allows the electrode surfaces to become coated without impairing operation of the measuring system. With its ability to provide consistently accurate monitoring and control, under conditions which would adversely affect a standard two-electrode conductivity system, the multi-electrode system can be used in areas which would otherwise be maintenance-intensive.

• Annular carbon for widest application coverage from process waters to caustic and acidic detergents
• Enables measurements up to 400 mS/cm
• Guaranteed 1.0 cell constants - no need to calibrate
• Direct contact temperature sensor provides essential rapid response in CIP processes
• Screw-in insertion sensor with 1 in. BSP or NPT threads
• DIN 11851 Dairy fitting and 2 in. Tri-Clamp for Food & Beverage applications
• Maximum temperature 100 °C (212 °F)
• Maximum pressure 6.6 bar (100 psi)
• Integral 4.6 m (15 ft) cable
