分析仪AX400系列

品牌	ABB	型号	AX416,AX436,AX468
类型	便携式PH计	显示方式	见下列参数表
探头型式	见下列参数表	测量范围	见下列参数表
精度	见下列参数表	温度补偿范围	见下列参数表（℃）
电源电压	见下列参数表（V）	工作温度	见下列参数表（℃）

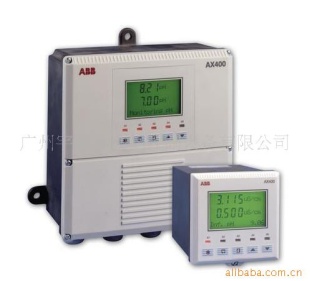

Conductivity & pH Analyzer AX416

The Conductivity & pH Analyzer AX416 is designed for use with ABB’s pH and 2-electrode conductivity cells. The cost-saving analyzer measures pH and conductivity or resistivity simultaneously, with exceptional accuracy and performance. It incorporates the latest technology to provide a highly reliable, yet flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications - click on the 'Data' tab to view.

• Wall, pipe and panel mount versions with IP 66 / NEMA 4X ingress protection
• Accurate measurements up to 14 pH, 10,000 µS/cm, 18.2 MΩ·cm and 8,000 ppm TDS
• Two sensors, one instrument - reduces cost of investment
• True high purity temperature compensations for all pure water applications
• 2 to 4 current outputs and 3 to 5 relay contacts
• Versatile power supply options: 85 ... 265 V AC or 12 ... 30 V DC
• High visibility, multi-language display

Conductivity & pH / Redox (ORP) Analyzer AX436

The Conductivity & pH / Redox (ORP) Analyzer AX436 enables two continuous measurements of mS/cm conductivity and pH / Redox (ORP) with simultaneous local display and transmission via analog outputs. The analyzer is designed for use with ABB’s 4 electrode conductivity cells and pH / Redox systems. It incorporates the latest technology to provide a highly reliable, yet flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications - click on the Data tab to view.

• Two sensors, one instrument - reduces cost of investment
• Accurate measurements up to 14 pH and 0 ... 2,000 mS/cm
• Problem-free measurements using auto-compensation of sensor fouling
• Dosing control functionality – long dose alarm and initial charge function
• Wall-, pipe- and panel-mount versions with IP 66 / NEMA 4X ingress protection
• Real-time clock and log book records alarm events
• 2 to 4 current outputs and 3 to 5 relay contacts
• Versatile power supply options: 85 ... 265 V AC or 12 ... 30 V DC
• High visibility, multi-language display

pH / Redox (ORP) & Dissolved Oxygen Analyzer AX468

The pH / Redox (ORP) & Dissolved Oxygen Analyzer AX468 is designed for use with ABB’s pH systems and 9408 dissolved oxygen sensors. The cost-saving analyzer measures pH and dissolved oxygen simultaneously, with exceptional accuracy and performance. It incorporates the latest technology to provide a highly reliable, yet flexible, feature-packed device that satisfies a diverse range of process monitoring and control applications. The AX468 is rugged and reliable for safe operation in harsh environments, simple to install and use, requires minimum maintenance and is suitable for use in a range of applications – click on the 'Data' tab to view.

• Two sensors, one instrument – reduces cost of investment
• Accurate measurements up to 14 pH, 0 ... 20 ppm and 0 ... 200 % saturation
• Sensor life indicator
• Salinity and atmospheric pressure correction capability as standard
• Wall-, pipe- and panel-mount versions with IP 66 / NEMA 4X ingress protection
• Continuous in-line diagnostics providing reduction in operating costs
