0.5mm板对板90°

0.5mm板对板90°简介

      适用于MP3、手机、数码相机、笔记本电脑、PDA等新兴的便携式电子产品。 直插／侧插板对板连接器,脚间距：0.5mm＆0.8mm 厚度(合高)：5.0MM  5.2MM  8.3MM等 PIN数量：10P---50P。经过市场10年验证，完全替代目前市场上的板对板连接器。品质优良，价格优势。交货期小于7天。

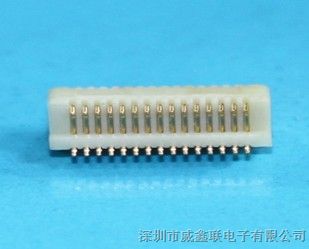

TYPE:0.5mm pitch B- TO- B （側插） Female
0.5mm B-TO-B Conn
Description：
Electrical
Voltage: 50V AC(RMS)/DC
Cruuent:0.5A AC(RMS)/DC
Contact Resistance: 50mΩmax
Insulation Resistance:50mΩmax
Dielectric Withstanding Voltage: 250VAC.RMS
Operating Temp:-20℃ ~~ +85℃
Materials
Housing:High temperature Plastic UL94V-0
Pin: BRASS
Fitting Nail:BRASS
Apply for (Circuit/2)=Even
Terminal:Copper Alloy
1、Pitch： 0.5MM 0.8MM
2、PIN： 10P 12P 14P 16P 18P 20P 22P 24P 26P 28P 30P 40P 50PIN
3、specification：单卡槽、双卡槽、定位柱、无定位柱
4、COLOR： beige 、 brown

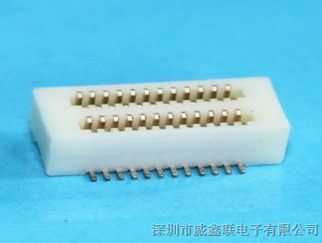

5、Male&Female Connector0.5mm Board to Board Male to Female
Mating height 5.0mm SMT Type
1.Type A:(M+F＝5.0mm)
Male height＝
Female height＝
From: 2x10＝20pins To: 2x40＝80pins (40pins/unit)
