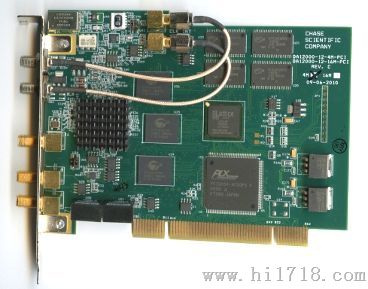

PCI高速信号发生器卡
PCI高速信号发生器卡

PCI高速信号发生器卡

价 格:
69800
型 号:
DA12000
品牌/商标:
北京迪阳
企业类型:
制造商
新旧程度:
全新
原产地:
北京迪阳公司
产品介绍

PCI高速信号发生器卡

PCI总线任意波形发生器卡:12位, 2GHz采样;单通道波形发生器卡

型号位数采样率通道存储价格
DA8150-12-512K-PCI12位150MHz 8512K39800元
DA8150-12-2M-PCI12位150MHz 82MB59800元
DA4300-12-1M-PCI12位300MHz 41MB39800元
DA4300-12-4M-PCI12位300MHz 44MB59800元
DA11000-12-4M-PCI12位1GHz 14MB49800元
DA11000-12-16M-PCI12位1GHz 116MB69800元
DA12000-12-4M-PCI12位2GHz 14MB69800元
DA12000-12-16M-PCI12位2GHz 116MB89800元
SY42000-PCI12位2GHz 44MB19800元
DA14000-12-4M-PCI12位4GHz 116MB89800元
DA14000-12-16M-PCI12位4GHz 14MB110000元
SY44000-PCI12位4GHz 416MB24000元

 详细资料请索要:sales@pc17.com.cn   tech@pc17.com.cn主要技术指标:? (1) Chan, 2.0 GS/sec/chan, 12-Bit D/A resolution4/16 MegaSamples Versions StandardSingle mid-sized PCI cardSFDR less than -45 @ 4 MHz - 700 MHz (typ)Full scale Trise/Tfall = 200 picoseconds (typ)Internal/External Master Clock, TriggerProgrammable segmentation size, trig, looping, etc.(2) TTL marker outputsFree Software Drivers for Windows 98, NT, 2000,XP, Vista, Windows 7, and Linux.GeneralThe DA12000 is one of the fastest PCI based ArbitraryWaveform Generators in the world and incorporatesmany advanced features such as programmable segmentsizes, looping, and individual segment triggering. Sincethe data uploaded to the card can be arbitrary, almost anywaveform that the user can imagine can be created.Whether it be random noise, a custom shaped pulse, apure sine wave, a modulated subcarrier, or an encodedradar signature, the DA12000 will faithfully reproduce it.The high speed D/A converter (DAC) runs off aninternal 2.0 GHz master clock. An auxilliary board isavailable for synchronizing multiple boards, locking toreference clocks, and amplification. Because the DAC isonly running at half of its maximum clock rate of 4.0GHz, the signal quality is quite good. Most products inthe AWG market are usually running at their maximumclock rates at reduced quality for their advertised rates.TriggeringThe DA12000 board is designed to be triggered by TTLinput, pulsed PECL, or software command. Forconvenience looping can be set to automatic, in whichcase the a single segment waveform repeats indefinitely.MemoryThe DA12000 comes standard with 4 or 16 Mega-Samples of memory per channel.Software Drivers, User InterfaceA universal DLL and system drivers are available forWindows 98, NT, 2000, XP, Vista, and Windows 7. Linuxdrivers are available for 32/64-bit Linux 2.6xx. A simpledebug Graphical User Interface (GUI) software for windowsis included with the drivers for quick driver installverification and simple testing.
