USB3.0协议分析仪

价格：: 59000

型号：: USBexp280

品牌/商标：: Ellisys

企业类型：: 贸易商

新旧程度：: 全新

原产地：: 北京迪阳公司

产品介绍

USB3.0协议分析仪

更精采请看：www.pc17.com.cn

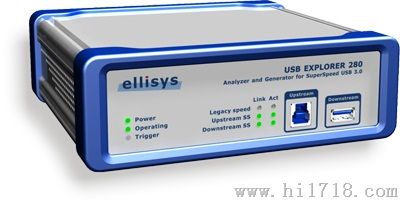

Ellisys USB Explorer 280 Multifunction USB 3.0 Protocol Analyzer

Ellisys USB Explorer 280 Protocol Analyzer 可测试及分析

USB 3.0 Super Speed,內建 4GB FIFO 内存可支援 USB 3.0 5GT/s 之协议分析.

USB Explorer 280是在一个成熟的Ellisys USB分析仪基础上发展来的，它提供了一个高效的设计环境，包括：一个内置4GB内存、可灵活配置的硬件和一个为分析测试USB 3.0 5GT/s 高速模式量身定制的处理器。通过设置，每个USB Explorer 280的硬件单元都可以成为一个协议分析仪或信号发生器。可分析USB3.0(超高速)和USB2.0(高速、全速、低速)。

1. Analyze USB 3.0 (SuperSpeed) and USB 2.0 links

2. (High Speed, Full Speed, Low Speed)

3. Emulate USB hosts and devices

4. Automatically detect link speed and SS receivers.

5. Upload and display live data during recording

6. Record LFPS states and display state transitions

Connect to differential SMA for alternative front-end probing during prototype stages

The USB Explorer 280 builds on a successful legacy of Ellisys USB analyzer and generator products, and delivers a superior design efficiency that includes an embedded 4GB of memory, configuration-flexible hardware, and a custom-made processor with the power needed to test and analyze the USB 3.0 5GT/s SuperSpeed mode. Each Ellisys USB Explorer 280 hardware unit is capable of acting as either a protocol analyzer or packet generator, depending on the configuration

Specifcations

Analyzer Characteristics
Supported specifications: USB 3.0, USB 2.0, and USB 1.x Supported link speeds: 5GT/s, 480Mb/s, 12Mb/s and 1.5Mb/s Timestamp accuracy: 8ns for USB 3.0, and 16.7ns for USB 2.0/1.x Low-level error detection: CRC-5, CRC-16, CRC-32, state transition errors, invalid PID, framing errors, frame sequence errors, length errors Bus states: detection of SuperSpeed link operating states and all USB 2.0/1.x electrical bus state

Generator Characteristics
Supported specifications: USB 3.0, USB 2.0, and USB 1.x Supported link speeds: 5GT/s, 480Mb/s, 12Mb/s and 1.5Mb/s Supported modes: host or device emulation Timing: 8ns for USB 3.0, and 16.7ns for USB 2.0/1.x

Embedded Memory
4 GBytes of FIFO Memory Data is stored in highly optimized format Analyzed data is uploaded in real time through a USB connection

Front-panel Connectors
Link under test: USB 3.0 STD-A and STD-B 8 SMA (early configurations as alternative front-end connection for SuperSpeed)

Rear-panels Connectors
Computer interface: USB STD-B Auxiliary equipment: supports connection of extension boards SMA trigger: in and out, 50 Ω, max 5VDC Inter-equipment: in and out, supports connection of several units together Power: Max 25W

Power Supply
