罗德与施瓦茨R
- 价 格：
- 58600
- 型 号：
- FSV7
- 品牌/商标：
- 罗德与施瓦茨R&S
- 企业类型：
- 贸易商
- 新旧程度：
- 全新
- 原产地：
- 德国
罗德与施瓦茨R

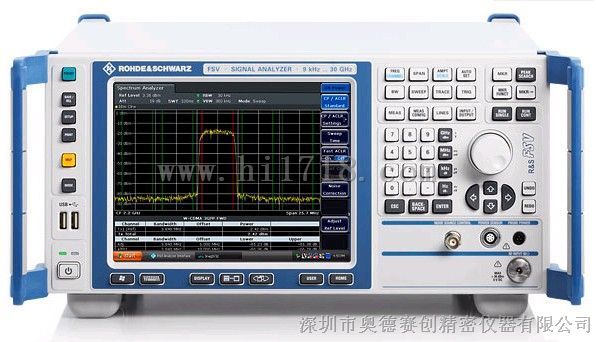

供应罗德与施瓦茨R&S FSV7信号和频谱分析仪 FSV7信号和频谱分析仪价格
特点：频率范围3.6/7/13.6/30/40 GHz,40 MHz信号分析带宽,移动硬盘的应用现场升级方便.
Brief Description
The R&S®FSV is an exceptionally fast and versatile signal and spectrum analyzer for performanceoriented, cost-conscious users working in the development, production, installation and servicing of RF systems
Key Facts
?Frequency range up to 3.6/7/13.6/30/40 GHz
?40 MHz signal analysis bandwidth
?0.4 dB level measurement uncertainty up to 7 GHz
?Measurement applications for GSM/EDGE (including EDGE Evolution), WCDMA/HSPA+, LTE, WiMAX?, WLAN, CDMA2000®, 1xEV-DO, vector signal analysis
?Easy on-site upgrading with options
?–110 dBc (1 Hz) phase noise at 10 kHz frequency offset
?+15 dBm third order intercept (TOI)
?Displayed average noise level (DANL) in 1 Hz bandwidth: –155 dBm at 1 GHz, –147 dBm at 30 GHz, with R&S®FSV-B24 preamplifier: – 162dBm at 30 GHz
?Removable hard drive for applications where security is a concern
?Frequency range up to 110 GHz with the R&S®FSV-B21 option integrated in the R&S®FSV30/40 and the R&S®FS-Z60/-Z75/-Z90/-Z110 harmonics mixers
Models
Designation | Order No. |
R&S®FSV3 Signal and Spectrum Analyzer, | 1307.9002K03 |
R&S®FSV7 Signal and Spectrum Analyzer, | 1307.9002K07 |
R&S®FSV13 Signal and Spectrum Analyzer, | 1307.9002K13 |
R&S®FSV30 Signal and Spectrum Analyzer, | 1307.9002K30 |
R&S®FSV40 Signal and Spectrum Analyzer, | 1307.9002K39 |
R&S®FSV40 Signal and Spectrum Analyzer, | 1307.9002K40 |
