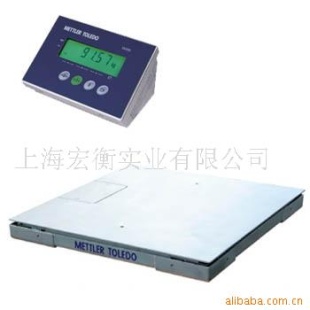

电子防爆地磅

秤台防爆等级：
防爆秤台：气体Ex ia ⅡC T6
                    粉尘DIP A20 TA ，T6
注：整秤防爆等级由系统中防爆等级的决定。
结构特点：

低秤台结构设计
秤台由秤体和框架组成
圆柱头摇式自动复位机构
限位一次成型，无需调节
限位柱：铜质
配有接地电缆
技术指标：

产品编号 型号 额定秤量(t) 分度值(kg) 台面规格(mXm) 秤台高(mm)
Ex-PF0.5-0808 SCS-0.5 0.5 0.2 0.8X0.8 90
Ex-PF1/2-0808 SCS-1/2 1/2 0.5/1 0.8X0.8 90
Ex-PF0.5-0810 SCS-0.5 0.5 0.2 0.8X1.0 90
Ex-PF1/2-0810 SCS-1/2 1/2 0.5/1 0.8X1.0 90
Ex-PF0.5-1010 SCS-0.5 0.5 0.2 1.0X1.0 90
Ex-PF1/2/3-1010 SCS-1/2/3 1/2/3 0.5/1/1 1.0x1.0 90
Ex-PF0.5-1012 SCS-0.5 0.5 0.2 1.0X1.2 90
Ex-PF1/2/3-1012 SCS-1/2/3 1/2/3 0.5/1/1 1.0x1.2 90
Ex-PF1/2/3-1212 SCS-1/2/3 1/2/3 0.5/1/1 1.2x1.2 90
Ex-PF5-1212 SCS-5 5 2 1.2x1.2 90
Ex-PF1/2/3-1215 SCS-1/2/3 1/2/3 0.5/1/1 1.2x1.5 90
Ex-PF5-1215 SCS-5 5 2 1.2x1.5 90
Ex-PF1/2/3-1218 SCS-1/2/3 1/2/3 0.5/1/1 1.2x1.8 90
Ex-PF5-1218 SCS-5 5 2 1.2x1.8 90
Ex-PF1/2/3-1515 SCS-1/2/3 1/2/3 0.5/1/1 1.5x1.5 90
Ex-PF5-1515 SCS-5 5 2 1.5x1.5 90
Ex-PF1/2/3-1520 SCS-1/2/3 1/2/3 0.5/1/1 1.5x2.0 90
Ex-PF5-1520 SCS-5 5 2 1.5x2.0 90
Ex-PF2/3-2020 SCS-2/3 2/3 1/1 2.0x2.0 90
Ex-PF5-2020 SCS-5 5 2 2.0x2.0 90
