KANON中村扭力扳手接头
- 价 格：
- 电议
- 型 号：
- SCK/RCK/HCK/QCK
- 品牌/商标：
- KANON
- 企业类型：
- 贸易商
- 原产地：
- 日本
产品介绍
KANON中村扭力扳手接头
KANON中村扭力扳手接头（开口式、六角型、棘轮式、梅花型）
SCK/RCK/HCK/QCK

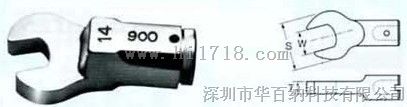

SCK Optional Replaceable Heads
Open end heads
Unit:mm
SCK Optional Replaceable Heads
Open end heads
Unit:mm| Model | Size W | S | T | Applicable torque wrench | ||||
|---|---|---|---|---|---|---|---|---|
| 230SCK | 7 | 8 | 9 | 10 | 11 | 29 | 7 | (N)60乣230LCK,DTC-PI40EXL (N)60乣230SPCK,(N)250FCK DTC-PI80EXL,DTC-N5EXL DTC-50EXL,DTC-N10EXL DTC-100EXL |
| 12 | 13 | 14 | 15 | 16 | 32 | |||
| 17 | 19 | 21 | 22 | 39 | ||||
| 24 | 45 | 8 | ||||||
| 450SCK | 8 | 9 | 10 | 11 | 32 | 8 | (N)450LCK,DTC-PI40EXL (N)450SPCK,DTC-N50EXL (N)500FCK DTC-500EXL | |
| 12 | 13 | 14 | 15 | 36 | 10 | |||
| 16 | 17 | 19 | 21 | 22 | 44 | |||
| 24 | 27 | 50 | ||||||
| 900SCK | 12 | 13 | 14 | 15 | 40 | 10 | (N)900LCK,DTC-PI800EXL (N)900SPCK,DTC-N100EXL (N)1000FCK DTC-1000EXL | |
| 16 | 17 | 19 | 21 | 22 | 48 | 12 | ||
| 24 | 27 | 30 | 57 | |||||
| 1800SCK | 17 | 19 | 21 | 22 | 56 | 14 | (N)1800LCK,DTC-PI100EXL (N)1800SPCK,DTC-N200EXL (N)1500FCK DTC-2000EXL | |
| 24 | 27 | 30 | 64 | |||||
| 32 | 36 | 41 | 75 | |||||
| 2800SCK | 19 | 21 | 22 | 24 | 63 | 16.5 | (N)2800LCK,DTC-PI200EXL (N)2800SPCK,DTC-N300EXL (N)2300FCK DTC-3000EXL | |
| 27 | 30 | 32 | 71 | |||||
| 36 | 41 | 46 | 85 | |||||
| 4200SCK | 27 | 30 | 32 | 88 | 25 | (N)4200LCK (N)4200SPCK | ||
| 36 | 41 | 46 | 95 | |||||
| 50 | 55 | 60 | 105 | |||||
| 4400SCK | 19 | 22 | 24 | 70 | 20 | (N)4400LCK (N)4400SPCK | ||
| 27 | 30 | 32 | 78 | |||||
| 36 | 41 | 84 | 22 | |||||
| 46 | 50 | 94 | ||||||
| 55 | 60 | 100 | 25 | |||||
| 7000SCK | 27 | 30 | 32 | 88 | 25 | (N)5600?7000LCK,DTC-PF400EXL DTC-5000EXL,DTC-N500EXL | ||
| 36 | 41 | 95 | ||||||
| 46 | 50 | 105 | ||||||
| 55 | 60 | 115 | ||||||
| 10000SCK | 36 | 41 | 100 | 30 | (N)8500?10000LCK,DTC-PF800EXL DTC-10000EXL,DTC-N1000EXL | |||
| 46 | 50 | 110 | ||||||
| 55 | 60 | 120 | ||||||
| 14000SCK | 41 | 46 | 115 | 34 | (N)14000LCK | |||
| 50 | 55 | 125 | ||||||
| 60 | 65 | 135 | ||||||
RCK Optional Replaceable Heads
Ring heads
Unit:mm| Model | Size W | S | T | Applicable torque wrench | |||
|---|---|---|---|---|---|---|---|
| 230RCK | 7 | 8 | 9 | 10 | 18 | 8 | (N)60乣230LCK,DTC-PI40EXL (N)60乣230SPCK,DTC-PI80EXL (N)250FCK,DTC-N5EXL DTC-N50EXL,DTC-N10EXL DTC-100EXL |
| 11 | |||||||
| 12 | 13 | 14 | 21 | ||||
| 17 | 19 | 22 | 24 | 31 | |||
| 450RCK | 8 | 10 | 19 | 10 | (N)450LCK,DTC-PI400EXL (N)450SPCK,DTC-N50EXL (N)500FCK DTC-500EXL | ||
| 11 | 12 | 13 | 14 | ||||
| 17 | 19 | 22 | 32 | ||||
| 900RCK | 12 | 13 | 14 | 25 | 13 | (N)900LCK,DTC-PI800EXL (N)900SPCK,DTC-N100EXL (N)1000FCK DTC-1000EXL | |
| 17 | 19 | 21 | 22 | 34 | |||
| 24 | 27 | 30 | 42 | ||||
| 1800RCK | 17 | 19 | 22 | 35 | 15 | (N)1800LCK,DTC-PF100EXL (N)1800SPCK,DTC-N200EXL (N)1500FCK DTC-2000EXL | |
| 24 | 27 | 30 | 45 | ||||
| 32 | 36 | 41 | 58 | ||||
| 2800RCK | 19 | 22 | 24 | 40 | 17 | (N)2800LCK,DTC-PF200EXL (N)2800SPCK,DTC-N300EXL (N)2300FCK DTC-3000EXL | |
| 27 | 30 | 32 | 47 | ||||
| 36 | 41 | 46 | 63 | ||||
| 4200RCK | 27 | 30 | 32 | 57 | 20 | (N)4200LCK (N)4200SPCK | |
| 36 | 41 | 65 | |||||
| 46 | 50 | 75 | |||||
| 55 | 60 | ||||||
| 4400RCK | 19 | 22 | 24 | 44 | 20 | (N)4400LCK (N)4400SPCK | |
| 27 | 30 | 32 | 50 | ||||
| 36 | 41 | 58 | |||||
| 46 | 50 | 66 | |||||
| 55 | 60 | 80 | |||||
| 7000RCK | 27 | 30 | 32 |
