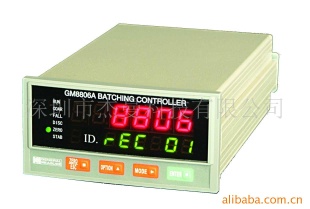

称重显示器

应用范围 Application

混凝土搅拌设备，沥青混合料搅拌设备，冶金高炉，转炉等设备中需要重量测控的系统。
Apply to concrete mixer, bitumen mixture equipments, equipments of converter or blast furnace burden and other equipments with weighing and control need.

特 点Characteristics

◆3路开关量输出控制（上、中、下限）。

3-way On/Off data output control (upper、middle and lower limits)

◆全面板数字标定。

Board-characteristic adjusting.

◆双向隔离串行口功能，具有RS232/RS485，方便与上位机通讯。

Function of two-way to isolate serial port that RS232/RS485 is    convenient getting communication with computer.

◆多重数字滤波功能。

Function that multilevel digtal filter.

◆自动零位跟踪、上电自动清零功能。

Have functions of automatic zero follow and automatic zero clearing when power up.

◆可通过串口对仪表进行标定的功能。

Can adjust the instrument through serial ports.

技术指标Specification

仪表电源   Main Supply：AC220V－15% +10% 50Hz

工作温度   Operating Temperature： －10~50℃

物理尺寸   Dimensions：98×49×151mm

传感器电源Load Cell Exciting Voltage：DC12V 350mA（MAX）

显示精度Display Resolution：1/10000

A/D分辨率A/D Resolving Power：1/500000(Max)

A/D转换率A/D Conversion Speed：200次/秒200times/sec
