出口型（IR型）.（SEMIKRON型）外型。
200A 250A 300A；
400V~1800V
金属螺柱结构；
承受高浪涌电流；
/T8949.2-1999标准

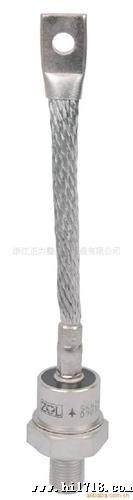

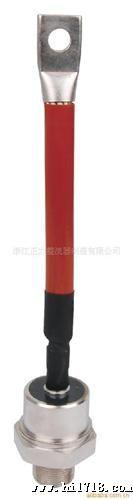

International Rectifier(IR) te and Semikron te, stud version rectifier diode, 100A~150A, 200V~1800V. DO-8 case. also could make fast recovery diode te.
Features
High surge current capability
Stud cathode and stud anode version
Wide current range
Metric device version ailable
Tical Applications
Battery charges
Converters
Power supplies
Machine tool controls
Welder Motor controls
Te IF() VFM/IFM IF(RMS) VRRM IRRM Rjc Tj Mounting Outline
A V A A V mA C'/W C' N/m
200U(R) 200 1.4 600 320 200~2600 ≤15 0.25 -40~+125 25.0 DO-9
250U(R) 250 1.35 750 400 200~2600 ≤15 0.23 -40~+125 25.0 DO-9
300U(R) 300 1.30 900 480 200~2600 ≤15 0.22 -40~+125 25.0 DO-9
