new energy leads low carbon life.
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar power system product, wind power system product, solar &wind hybrid system(on grid and off grid systems).
For solar system mostly use for household power supply, have main charger when non-sunshine. very useful system. Pure sine wave output, can take all inductive loads. Product sales to (France,USA,Canada,Pakistan,Indonesia,UAE,Bangladesh,
Philippines,Greece,Iran,Kuwait,Iraq,Bulgaria,Romania,South Africaect)
Solar on grid system:solar panel+grid tie inverter
Solar off grid system:solar panel+hybird inverter(controller ,inverter)+battery
(other parts as PV array combiner,rack,cable can optional)

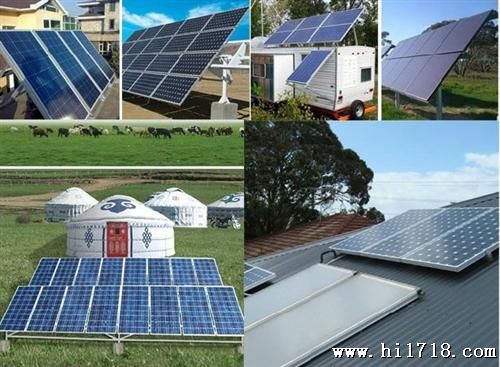

System Application:

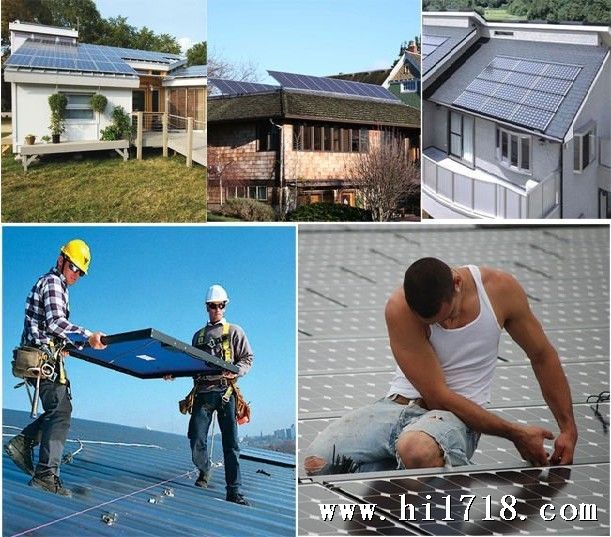

1,Living house and home building;
2.Office building ,factory and warehouse
3.Shopping mall,venue,stadium and so on
4.Power station,field operation and some huge engineer construction
Good quality, price and better technical support and service, make Tanfon energy technology Co.,Ltd as your most valuable cooperator in China.
太阳能系统中的光伏系统，基本来说有离网和并网两种系统。离网系统，满足家庭用电的话，代价是很高的，如果是照明，那是比较简单的，带个电视、计算机这样的负载，通过蓄电池、逆变也问题不大，问题是还有些洗衣机、冰箱这样的荷载，就导致你的光伏电池面积要大、蓄电池要大、相应的稳压稳流逆变设备容量也要大，而且你不是公建大规模应用，厂家基本要为你一户单独量身定做。以1天10度电算，估计做下来也要几十万。还要考虑几年的电池更换问题。
如果当地有条件，有并网条件，并网系统还是不错的，就是你发的电上，你再从取电，也会有相应政策高价收你的电，但前提是，要有这个条件。目前在国内几乎没有针对家用的并网的政策和条件。不过几年内肯定会的。
至于1天能发多少电，这和你装机容量和蓄电池的量有关，你装的越多肯定用的时间越长。

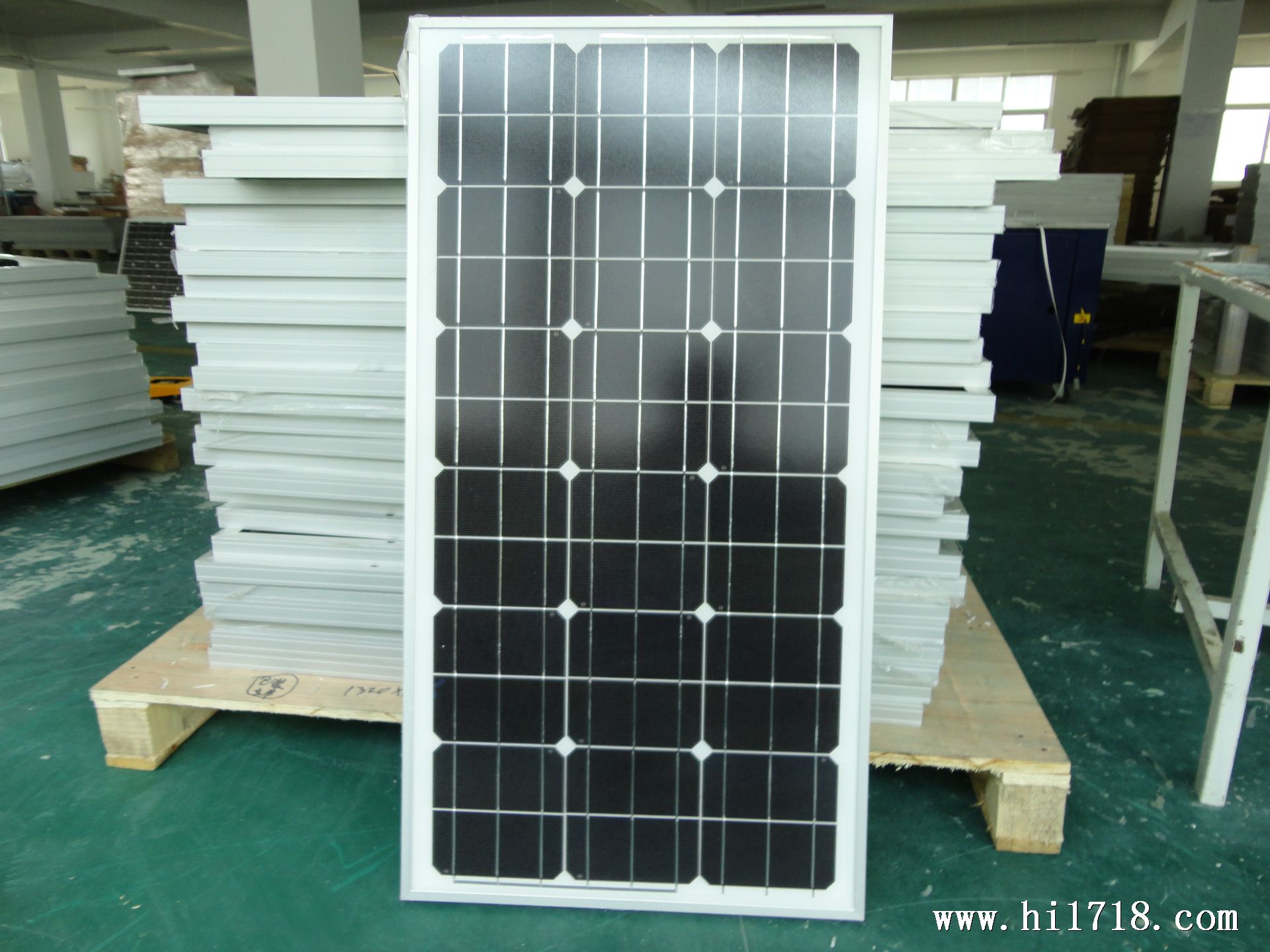

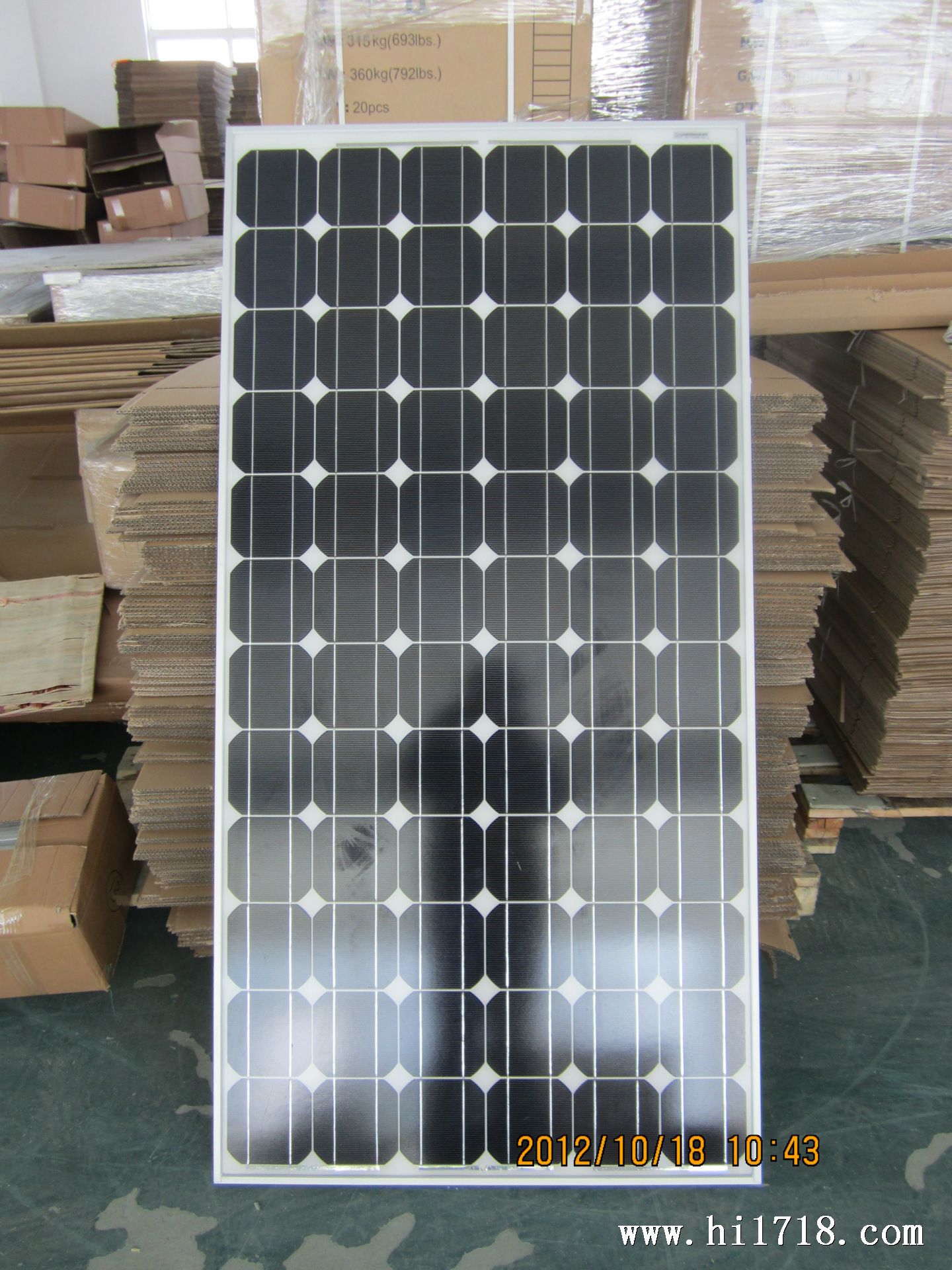

te:mono solar panel(poly optional) 类型:单晶太阳能板及多晶太阳能板可选 Max power功率:200w Vmp:功率电压28.8V Voc开路电压:36.4V Imp功率电流:8.3A weight重量:20KG Size尺寸:1172*983*35mm 25 years life time (CE TUV) Connect way:4pcs panels in series as a string, 9 strings in parallel4片太阳能串联成一组，9组并联。 | |
Model:H9T-96v Multiple PV strings inputs多组光伏输入 Simplify wiring between PV array and controller,简化光伏阵列和控制器之间的连接 protections to controller,保护控制器 features:Wide range of DC input voltage宽直流输入电压 Reliable thunderstorm& surge protection 的雷和过载保护 | |
Inverter power:9kw/96v逆变器功率:9KW/96V MPPT Controller model:96v/100A MPPT控制器型号:96V/100A Charging efficiency;90%-95%, 充电效率:90-95% LCD display inverter and controller info LCD显示逆变器和控制器信息 With AC charger built in内置AC充电器 Output:110v,120v,220v,230v,240v(optional) 输出:110V,220V,230V,240V(可选) Product size: 590*470*730mm 产品尺寸：590*470*730mm Weight:107KG重量:107kg | |
Capacity:12V/200AH full sealed容量：12V/200AH Solar power lead-acid battery,太阳能铅酸电池 Service life:5-6 years,使用时间:5-6年 Size:522*238*218mm尺寸:522*238*218mm Weight:58KG重量:58KG Connect way:8 connect panels in series as a string,5strings in parallel 接线方式;8个电池串联成一组，5组并联 | |
Ground rack installation地面支架安装 including complete fittings包含的配件
(other te of rack can be customized as per client's requirement ) | |
12mm2 cables(one red and one black) International standard, with specification suitable for solar system 12mm2线(1捆红色，1捆黑色) 合标准，适用于太阳能系统 |
